Thông tin chi tiết sản phẩm:
|
| Loại áp suất: | Chắc, thước đo | Áp suất vận hành: | 100 psi |
|---|---|---|---|
| Sự chính xác: | 0,2 % | Loại đầu ra: | Tương tự |
| Làm nổi bật: | board mount pressure sensor through hole,miniature low pressure sensor,electronic pressure sensor with warranty |
||

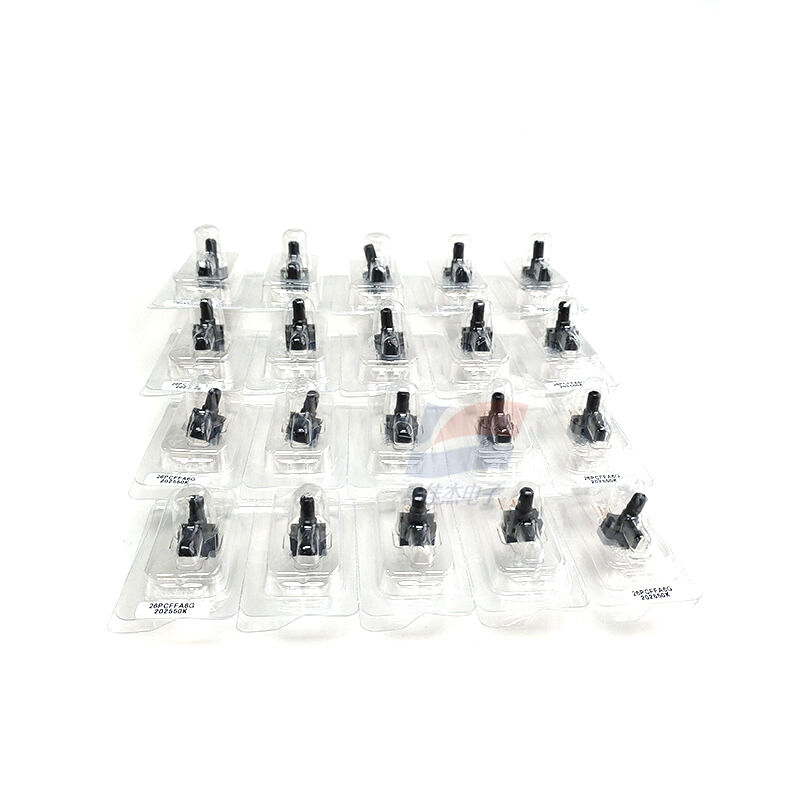

26PCFFA6G Board Mount Pressure Sensors Through Hole Miniature Low Pressure
The 26PC Series Miniature Pressure Sensors are small, cost-eflective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to ofer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milivolt output signal that is
proportional to the input pressure.
The low power 26PC sensors are designed to accommodate pressures from 1 psi to 250 psi and have an operating
temperature range of -40 '0 to 85 90 [-40 'F to 185 °F].
Specification:
|
Mounting Style
|
Through Hole |
| Operating Supply Voltage | 10 V |
| Port Type | Single Axial Barbless |
| Package / Case | DIP-4 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Port Size | 0.2 in |
| Supply Voltage - Max | 16 V |
| Unit Weight | 0.070548 oz |
