Thông tin chi tiết sản phẩm:
|
| Sự chính xác: | ±0,25% FS | Phạm vi áp suất: | 0-5 thanh (0-0,5 MPa) |
|---|---|---|---|
| Tổng dải lỗi: | ±1,0% Bảng cân đối kế toán | Quá tải / Áp suất nổ: | 2 lần |
| Tín hiệu đầu ra: | 4-20mA | điện áp cung cấp điện: | 9-30VDC |
| Vật liệu tiếp xúc trung bình: | Thép không gỉ 17-4ph | Nhiệt độ hoạt động: | -40℃~+125℃ |
| Làm nổi bật: | industrial compact pressure transmitter,0-5bar pressure sensor,0-0.5MPa electronic pressure sensor |
||
Product Description:

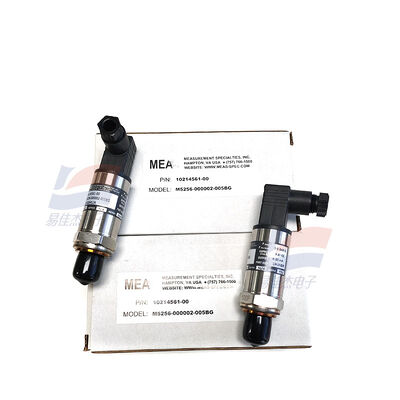

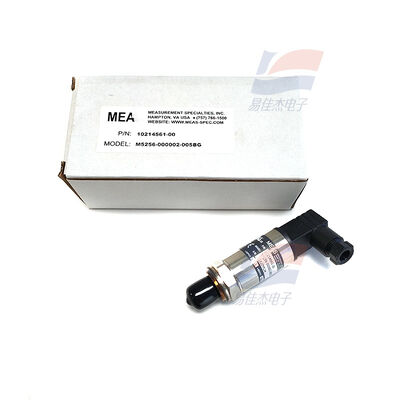

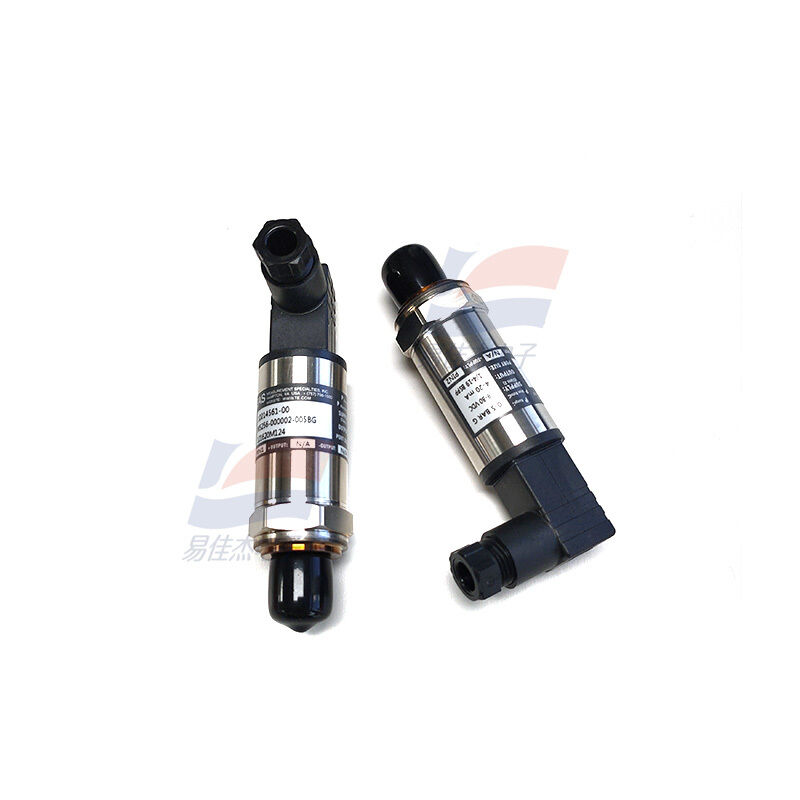

YJJ M5256-000002-005BG 0-5 bar 0-0.5 MPa Industrial Compact Pressure Transmitter
Features:
I. Basic Information
Series: M5200 Industrial Compact Pressure Transmitter (Glass Micro-fused Piezoresistive Principle)
Model Disassembly
M5256: Product Series Model
000002: 4-20mA Current Output, 2-wire System
005BG: Range 0-5 bar (0-0.5 MPa), Gauge, Stainless Steel Isolation Diaphragm
Core Features: No O-ring, No Welding Joint, Integrated Stainless Steel Structure, Resistant to Vibration, Impact Resistance, IP68 Waterproof, Suitable for Harsh Industrial Environments
II. Core Technical Parameters
Pressure Range: 0-5 bar (0-0.5 MPa) Gauge Pressure
Accuracy: ±0.25% FS (Non-linear, Hysteresis, Repeatability Combined Error), Total Error Band ±1.0% FS
Overload / Burst Pressure: 2 times the Range Overload, 3 times the Range Burst Pressure
Output Signal: 4-20mA Two-wire Standard Current Output
Power Supply Voltage: 9-30VDC (Standard 24VDC), Supports Reverse Polarity Protection, Output Short Circuit Protection
Medium Contact Material: 17-4PH Stainless Steel, Compatible with Air, Water, Hydraulic Oil, Weakly Corrosive Gases/Liquids
Operating Temperature: -40℃~+125℃; Compensation Temperature -20℃~+85℃
Response Time: <3ms, Fast Dynamic Pressure Response
Long-Term Stability: ≤±0.25% FS / Year, Extremely Low Temperature Drift
Interface / Protection: Standard G1/4 Thread, Cable Outlets, IP68 Protection Grade
Anti-interference: EMC Electromagnetic Compatibility Certification, Resistant to 10V/m Radio Frequency Interference, Compliant with CE Industrial Standards
III. Main Applications (Suitable for Your Gas Detection, Industrial Instrument Business)
Gas Analyzer Accessories: Gas Path Pressure Monitoring, Sampling Pump Pressure Closed-loop Control, Flow Sensor Pressure Compensation, Compatible with Shengmi, SENKO, Xiangxiang, and Aosong Complete Sets
Industrial Hydraulic / Pneumatic Systems: Air Compressor, Cylinder, Hydraulic Station, Pipeline Pressure Monitoring
Environmental Protection / Water Treatment: Sewage Equipment, Water Supply Pipeline, Water Quality Online Monitoring Instrument Pressure Collection
HVAC / Refrigeration: Air Conditioner, Refrigeration Unit, Refrigerant Pipeline Pressure Monitoring
Precision Equipment / Laboratory: Gas Ratio Device, Precise Fluid Control, Automated Equipment Pressure Detection
OEM Accessories: Gas Detector, Flow Meter, Built-in Pressure Module for Industrial Control Equipment
Specifications:
| Series | M5200 |
| M5256 | Product Series Model |
| 000002 | 4-20mA Current Output, 2-wire System |
| 005BG | Range 0-5 bar (0-0.5 MPa) |
| Core Features | No O-ring |
| Pressure Range | 0-5 bar |
