Thông tin chi tiết sản phẩm:
|
| Cung cấp điện áp: | DC 5V | Giao diện giao tiếp: | Điện áp đầu ra RS485 |
|---|---|---|---|
| Sự chính xác: | ± 0,5% fs | Điện áp cung cấp điện: | 10V DC |
| Phạm vi nhiệt độ hoạt động: | -30℃ đến 100℃ | Thời gian phản hồi: | < 1 mili giây |
| Nhiệt độ làm việc: | -20oC - 80oC | ||
| Làm nổi bật: | 0-700KPa liquid pressure sensor,electronic pressure sensor with warranty,YJJ XGZP160-701 pressure monitoring sensor |
||
Product Description:

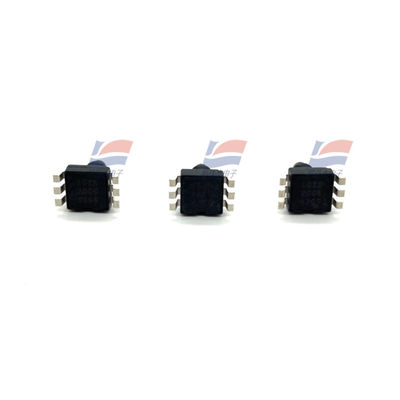

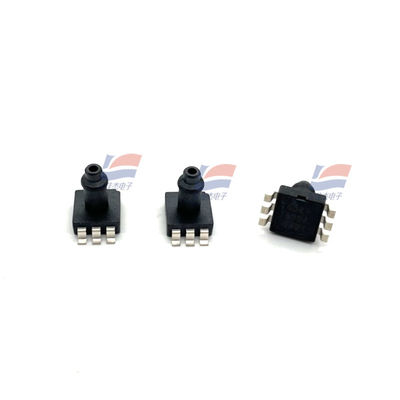

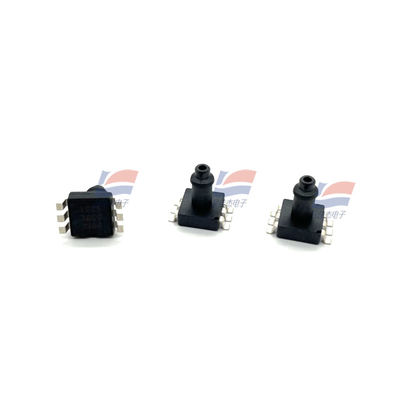

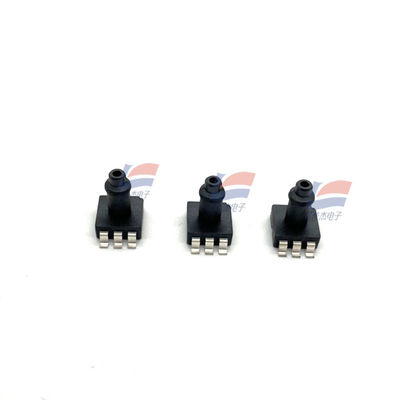

YJJ XGZP160-701 0-700KPA Pressure Sensor Is Used For Monitoring Liquid Pressure
Features:
Main parameters of the XGZP160 pressure sensor are as follows:
1. High precision: The pressure sensor adopts advanced sensing technology, featuring high precision and stability, and can accurately measure pressure values.
2. Wide measurement range: This product can be applied in various industrial fields and has a wide measurement range, meeting different pressure requirements.
3. Fast response: The pressure sensor has a fast response time and can promptly capture and feedback pressure changes.
4. Strong corrosion resistance: The sensor made of special materials can work stably in corrosive environments for a long time, ensuring the lifespan and reliability of the product.
5. Communication interface: This product is equipped with a standard serial port interface, facilitating data transmission and communication with other devices.
III. Technical parameters
1. Measurement range: 0 - 1000 kPa
2. Accuracy: ±0.5% F.S.
3. Response time: < 1 ms
4. Working temperature: -20℃ - 80℃
5. Supply voltage: DC 5V
6. Communication interface: RS485
Work pressure range
-100 kPa to 100 kPa (gauge pressure)
Output voltage
50 - 90 mV (analog signal output)
Accuracy
±5% of full scale
Power supply voltage 10V DC
Packaging form
DIP6 dual-row straight chip-in package
Operating temperature range
-30℃ to 100℃
Application fields
Suitable for scenarios such as vacuum packaging machines and measuring instruments, and supports monitoring of gas/liquid pressure.
Specifications:
| Measurement range | -100 kPa to 100 kPa |
| Accuracy | ±0.5% F.S |
| Response time | < 1 ms |
| Working temperature | -20℃ - 80℃ |
