Thông tin chi tiết sản phẩm:
|
| Loại áp lực: | tuyệt đối | Áp lực làm việc: | 16,7 psi |
|---|---|---|---|
| Sự chính xác: | 1,5 % | Loại đầu ra: | Analog |
| Kiểu cài đặt: | Qua lỗ | Gói / Nhà ở: | Đơn thể-6 |
| Làm nổi bật: | MPX4115A absolute pressure sensor,electronic pressure sensor for environmental monitoring,MPX4115AP sensor with absolute pressure range |
||
Product Description:

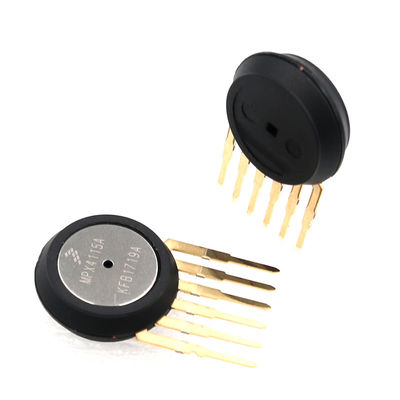

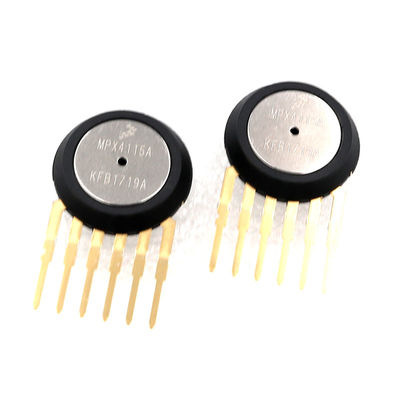

YJJ MPX4115A MPX4115AP Absolute Pressure Sensors Ranging From Used In Environmental Monitoring And Other Fields
Features:
MPX4115 pressure sensor is an absolute pressure sensor, mainly used in industrial automation and environmental monitoring, etc. It has the following core parameters:
Core parameters
Operating pressure range: 15 kPa (1.5 psi) to 115 kPa (11.5 psi), with a maximum pressure of up to 400 kPa (58.02 psi)
Output Type: Analog Voltage, Output Range: 0.2 V to 4.8 V
Power supply voltage: 4.85 V to 5.35 V DC
Operating temperature: -40°C to 125°C
Packaging form: 6-SIP module, panel-mounted design
Functional Feature
Temperature Compensation: Achieved through circuit design to eliminate the impact of temperature.
High precision: The pressure measurement accuracy is up to 1.5%
Application scenario
Suitable for pressure monitoring of industrial equipment, environmental pressure detection, and scenarios requiring high-precision pressure data. For example, industrial scenarios where strict pressure parameters are required, such as gas compressors and hydraulic systems.
Specifications:
| Output Type | Analog Voltage, Output |
| Range | 0.2 V to 4.8 V |
| Power supply voltag | 4.85 V to 5.35 V DC |
| Operating temperature | -40°C to 125°C |
