Thông tin chi tiết sản phẩm:
|
| Loại áp lực: | Áp suất đo | Sự chính xác: | 0,15% toàn thang đo |
|---|---|---|---|
| Điện áp làm việc: | 5V | Làm việc hiện tại: | 10mA |
| Bưu kiện: | NHÚNG-6 | Loại cổng: | Trục đơn không có cổng |
| Kích thước cổng: | 0,11 inch | Phạm vi nhiệt độ: | -45°C đến +125°C |
| Làm nổi bật: | medical blood pressure sensor,0.97 PSI pressure sensor,electronic pressure sensor with warranty |
||
Product Description:

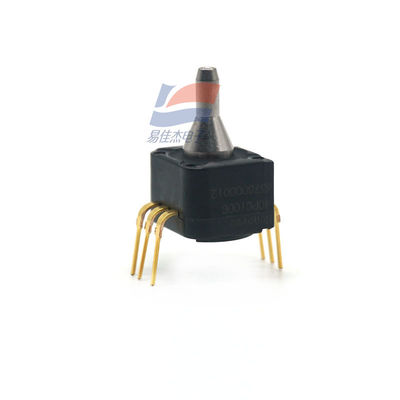

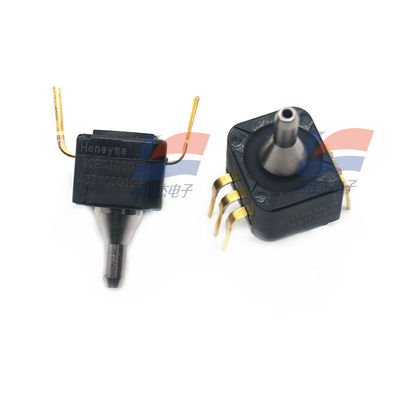

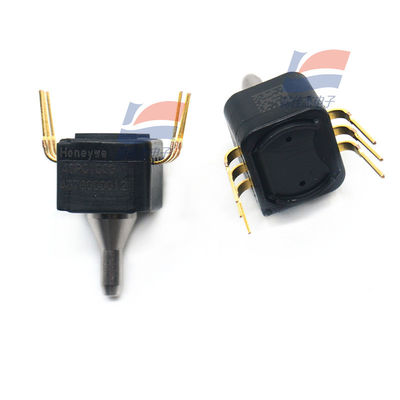

YJJ 40PC001B2A 0.97 PSI Pressure Sensor Is Used In Medical Blood Pressure Testing Equipment
Features:
Minimum volume magnification pressure sensor from HoneywelI/MicroSwitch division.Complete alignment and temperature compensation, - pressure products are the strongest, the widest temperature sensor.In addition, the 40PC is compatible with a wide range of media, from dry air and water to coolant and oil.The 40PC provides analog amplification signal output, and the sensor utilizes the original design of a single silicon chip to concentrate all the temperature compensation, output zero/full range correction and amplification functions in a single silicon chip.The 6-pin DIP design is suitable for traditional PCB installation, with three pins on one side of the sensor for power supply, grounding and output, and three pins on the other side for fixation.When the sensor pressure port is horizontal to the PCB, three fixed feet can be removed.
The characteristics of
minimum volume with enlarged sensor
complete signal conditioning
operating temperature, -45~+125℃
silicon piezoresistive technology
single chip design
6-pin DIP pin
PERFORMANCE CHARACTERISTICS
Pressure Range ±50 mm Hg 0-15 psi 0-100 psi 0-150 psi 0-250 psi
Overpressure, max. ±170 mm Hg 45 psi 200 psi 300 psi 500 psi
Supply Voltage 5 VDC ±0.25
Supply Current 10 mA max.
Output Source Current 0.5 mA max.
Output Sink Current 1.0 mA max.
Operating Temperature -45° to +125°C (-49° to +257°F)
Storage Temperature -55° to +125°C (-67° to +257°F)
Hysteresis & Repeatability 0.15% Span, Typ.
Ratiometricity (at 4.75 to
5.25 Supply Voltage) ±0.25% Span, Typ.
Output Load Capacitance 0.05 microtarads, max.
Full Scale
-50 mm Hg 0.50 VDC Typ.
+50 mm Hg 4.50 VDC Typ.
All other pressure ranges 4.50 VDC Typ.
Media DRY GASES ONLY: Media must be compatible with
Compatibility P1 port epoxy based adhesive
Media must be compatible with glass, silicon,
P2 port stainless steel, invar, Sn/Ni plating or Sn/Ag solder
40PC SERIES ORDER GUIDEtalo
40PC001B1A ±50 mm Hg Bi-directional 1-unformed
40PC001B2A ±50 mm Hg Bi-directional 2-formed away from port
40PC001B3A ±50 mm Hg Bi-directional 3-formed towards port
40PC015G1A 0-15 Gage 1-unformed
40PC015G2A 0-15 Gage 2-formed away from port
40PC015G3A 0-15 Gage 3-formed towards port
40PC100G1A 0-100 Gage 1-unformed
40PC100G2A 0-100 Gage 2-formed away from port
40PC100G3A 0-100 Gage 3-formed towards port
40PC150G1A 0-150 Gage 1-unformed
40PC150G2A 0-150 Gage 2-formed away from port
40PC150G3A 0-150 Gage 3-formed towards port
40PC250G1A 0-250 Gage 1-unformed
40PC250G2A 0-250 Gage 2-formed away from port
40PC250G3A 0-250 Gage 3-formed towards port
Specifications:
| Supply Voltage | 5 VDC ±0.25 |
| Product technology | Silicon piezoresistive technology |
| Supply Current | 10 mA max |
| Output Source Current | 0.5 mA max. |
