Thông tin chi tiết sản phẩm:
|
| Loại áp lực: | Sự khác biệt | Áp lực hoạt động: | 0,18 psi |
|---|---|---|---|
| Sự chính xác: | 2% | Loại đầu ra: | Điện tử |
| Làm nổi bật: | board mount pressure sensor,silicon low pressure sensor,electronic pressure sensor with warranty |
||

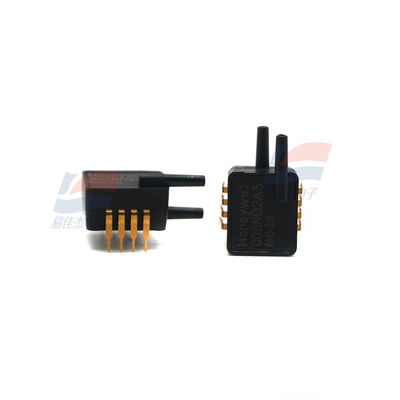

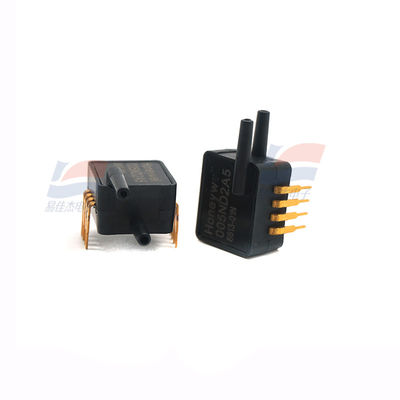

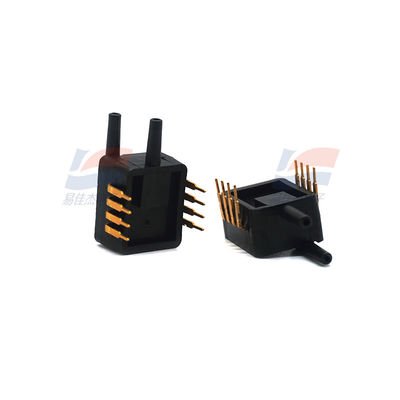

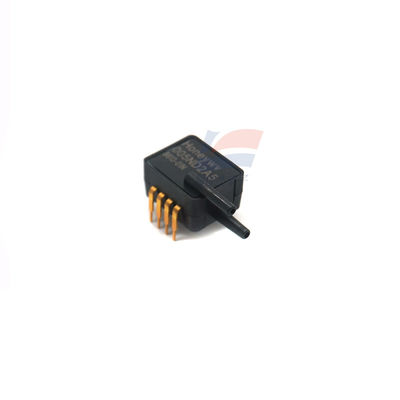

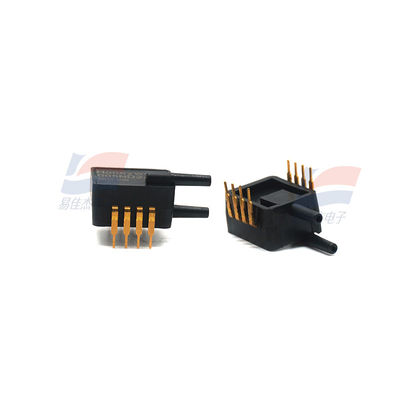

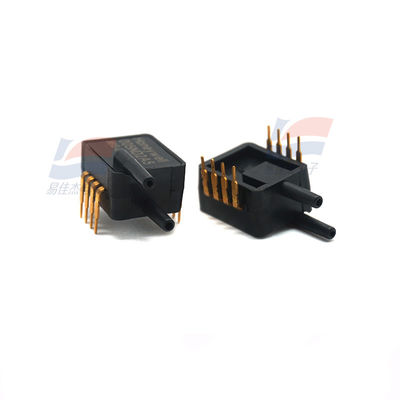

ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure
FEATURES
* Output options: I
2C- or SPI-compatible 12-bit digital
* Precision ASIC conditioning and temperature
compensated over 0 °C to 85 °C [32 °F to 185 °F] temperature range
* Low operating voltage
* Absolute, differential and gage types
* Pressure ranges from 10 inches H2O to 100 psi
* Standard calibrations in inches H2O, cm H20, psi, mbar,bar, kPa
* Total error band of ±2.0% of full scale span maximum
* RoHS compliant
Specification:
|
Mounting Style
|
Through Hole |
| Interface Type | I2C |
| Operating Supply Voltage | 5 V |
| Port Type | Dual Radial Barbless |
| Resolution | 14 bit |
| Package / Case | DIP-8 |
| Minimum Operating Temperature | - 20℃ |
| Maximum Operating Temperature | + 105℃ |
| Operating Supply Current | 3.5 mA |
| Port Size | 2.31 mm |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
