Thông tin chi tiết sản phẩm:
|
| Phạm vi bù nhiệt độ: | 0 ℃ đến + 60 ℃ | Phạm vi nhiệt độ hoạt động: | -20℃ đến 100℃ |
|---|---|---|---|
| Năng lực quá tải: | ≤5kpa | Áp suất nổ: | ≤5kpa |
| Áp suất tối đa: | Tại cổng P2: 500kPa | Bưu kiện: | SOP-8 |
| Làm nổi bật: | medical health pressure sensor,electronic pressure sensor with range options,YJJ XGZP6899A005HPDPN pressure sensor |
||
Product Description:

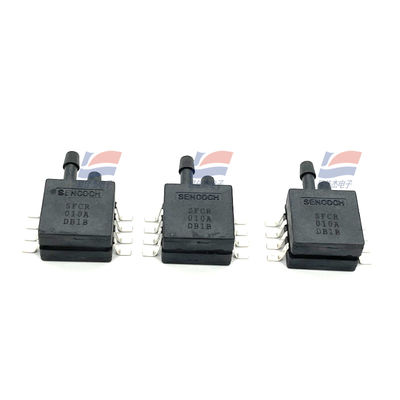

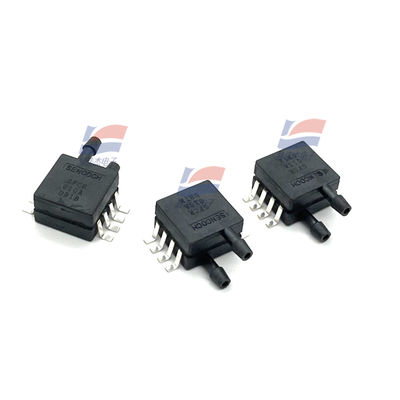

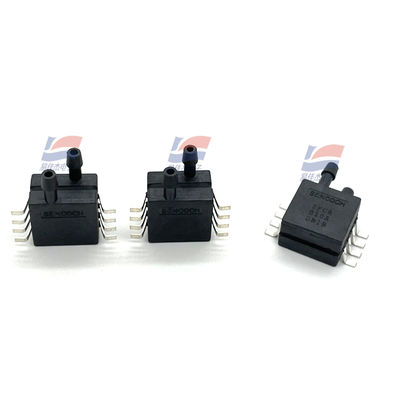

YJJ XGZP6899A005HPDPN Pressure Sensor Is Used In Fields Such As Medical Health (Range Pptions Available)
Features:
XGZP6899A005HPDPN Pressure Sensor Brief Parameters
Measurement Range: -100kPa to -0.5kPa, 0kPa to 0.5kPa, 0kPa to 700kPa. The range can be customized.
Power Supply Voltage: Optional 5V or 3.3V DC power supply.
Pressure Type: Differential pressure type (positive pressure and negative pressure).
Applicable Medium: Suitable for non-corrosive gases or air.
Output Signal: Calibrated and amplified analog signal. Output range is 0.5 - 4.5V (5V power supply) or 0.2 - 2.7V (3.3V power supply).
Accuracy: When the pressure is within 10kPa < pressure ≤ 200kPa, the accuracy is ±2% of the full scale; when the pressure is ≤ 10kPa or > 200kPa, the accuracy is ±2.5% of the full scale. The accuracy can be customized.
Temperature Compensation Range: 0℃ to + 60℃ (32℉ to + 140℉), customizable.
Operating Temperature Range: -20℃ to 100℃ (-4℉ to 212℉).
Overload Capacity: When the pressure is ≤ 5kPa, the overload capacity is 5 times the rated pressure; when 5kPa < pressure ≤ 200kPa, the overload capacity is 2.5 times the rated pressure; when the pressure > 200kPa, the overload capacity is 1.5 times the rated pressure.
Explosion Pressure: When the pressure is ≤ 5kPa, the explosion pressure is 10 times the rated pressure; when 5kPa < pressure ≤ 200kPa, the explosion pressure is 3 times the rated pressure; when the pressure > 200kPa, the explosion pressure is 2 times the rated pressure.
Maximum Pressure at Port P2: 500kPa.
Package Form: SOP8 package, with two ventilation holes, can be directly installed on the standard printed circuit board (PCB).
Application Fields: Widely used in medical health (such as ventilators, blood pressure monitoring, etc.), consumer and household (such as coffee machines, vacuum cleaners, etc.), industrial and automation (such as HVAC, process control monitoring, etc.) fields.
Specifications:
| Measurement range | -100kPa to -0.5kPa, 0kPa to 0.5kPa, 0kPa to 700kPa |
| Power supply voltage | Optional 5V or 3.3V DC power supply |
| Pressure type | Differential pressure type |
| Output signal | Calibrated and amplified analog signal |
| Accuracy | 10kPa and 200kPa |
