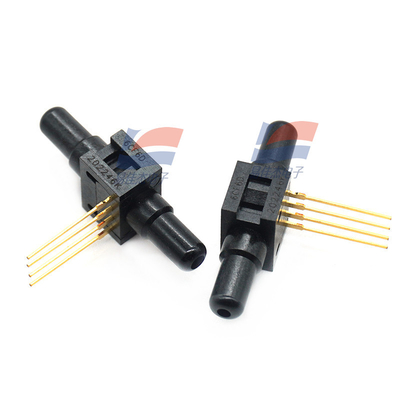

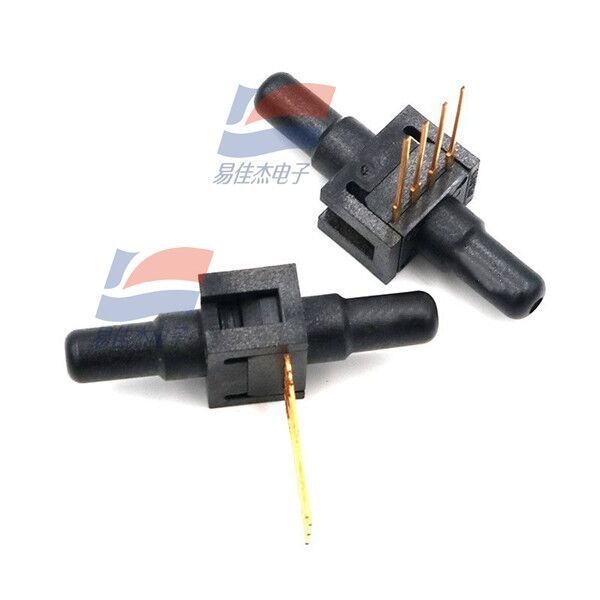

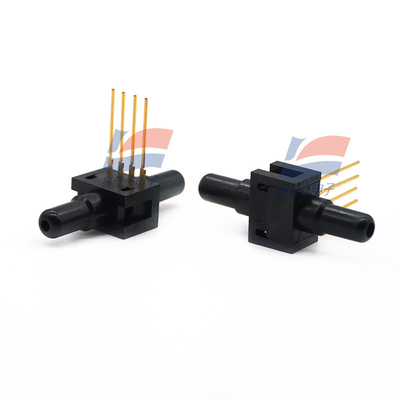

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

Chứng nhận
Trung Quốc ShenzhenYijiajie Electronic Co., Ltd. Chứng chỉ
Trung Quốc ShenzhenYijiajie Electronic Co., Ltd. Chứng chỉ
Tôi trò chuyện trực tuyến bây giờ

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor
YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

Hình ảnh lớn :  YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

Thông tin chi tiết sản phẩm:
Nguồn gốc: Hoa Kỳ
Hàng hiệu: YJJ
Số mô hình: 24pcffa6d
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: có thể đàm phán
chi tiết đóng gói: Gói hộp
Thời gian giao hàng: 5-8 ngày
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, Moneygram
Khả năng cung cấp: 1500

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

Sự miêu tả
Phạm vi: 0 - 100 psi Sự chính xác: ± 0,2% quy mô đầy đủ (FS)
Tín hiệu đầu ra: 156 - 294 mV Điện áp cung cấp điện: 10 V DC
Khả năng tương thích trung bình: Khí không ăn mòn Không có điểm bù: -30 đến +30 mV
Tuyến tính: ±0,25% FS Thời gian phản hồi: 1 ms
Làm nổi bật:

medical differential pressure sensor 100PSI

,

24PC series pressure sensor medical

,

electronic pressure sensor with warranty

Product Description:

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor



Features:

Detailed parameter description of the 24PCFFA6D pressure sensor:

1. Basic Parameters

Brand: Honeywell

Pressure Type: Differential

Range: 0 - 100 psi (approximately 6.9 bar)

Accuracy: ±0.2% of Full Scale (FS)

Output Signal: 156 - 294 mV (non-amplified analog output)

Power Supply Voltage: 10 V DC (allowable range 10 ± 0.01 VDC)

Medium Compatibility: Non-corrosive gases/liquids such as nitrogen, oxygen, water, etc.

2. Performance Indicators

Zero Point Offset: -30 to +30 mV (typical value 0 mV)

Linearity: ±0.25% FS (optimal fitting straight line)

Repeatability & Hysteresis: ±0.15% FS

Response Time: 1 ms

Temperature Drift:

Zero Point Drift: ±2.0 mV (0 - 50℃)

Sensitivity Drift: ±5.0% FS (25 - 50℃)

Long-Term Stability: ±0.5% FS per year

3. Environmental Adaptability

Operating Temperature: -40 to +85℃

Storage Temperature: -55 to +100℃

Protection Grade: Not explicitly stated, but meets industrial-level sealing requirements

4. Physical Characteristics

Electrical Connection: Wire Leads

Weight: Approximately 2 g

Certification: Passed vibration (20g, 0 - 2kHz) and shock (150g) tests

5. Application Scenarios

Industrial process control (such as pneumatic system pressure monitoring)

Medical equipment (requires compatibility with medium verification)



Specifications:

Work pressure 100 psi
Output type Analog
Installation style Through Hole
Operating power supply voltage 10V
