Thông tin chi tiết sản phẩm:
|
| Kích cỡ: | chiều rộng/chiều cao/chiều dài | Loại đầu ra: | Đầu ra điện áp |
|---|---|---|---|
| Mẫu bao bì: | Núi bề mặt | Loại thiết bị đầu cuối: | Terminal thẳng |
| Độ chính xác: | Độ chính xác tối đa 2,5% | Thời gian phản hồi: | 2000 micro giây |
| Làm nổi bật: | industrial pressure sensor with warranty,electronic pressure sensor 7.251 Psi,AG206-050KG pressure sensor for instruments |
||
Product Description:

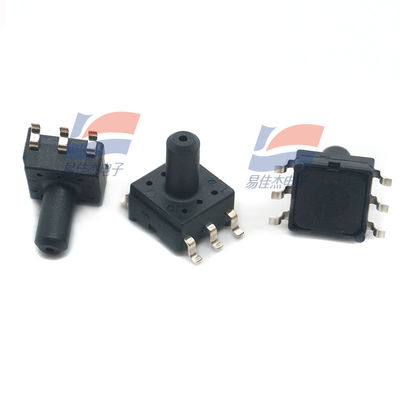

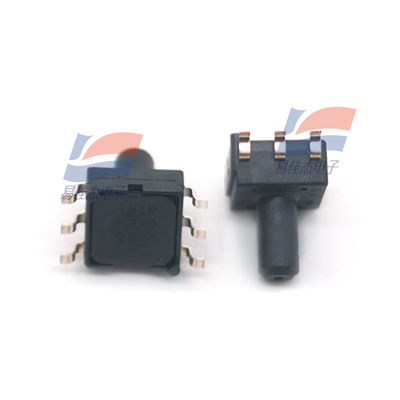

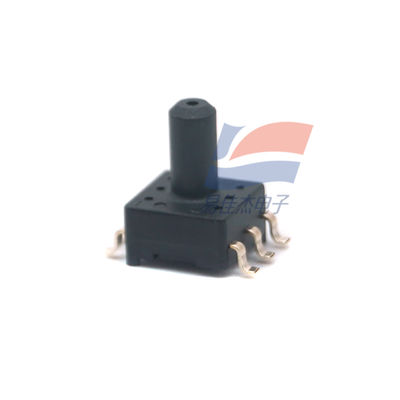

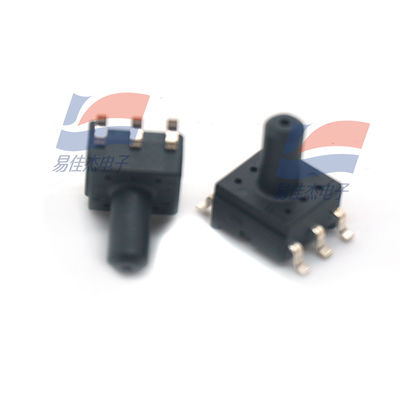

XFGM-6050KPGSR AG206-050KG 7.251 Psi Pressure Sensor Is Used In Industrial Instruments And Meters
Features:
XFGM-6050KPGSR pressure sensor is a pre-amplified, 5V excitation, surface-mounted pressure sensor, mainly applied in industrial instruments and meters, pressure switches, pneumatic equipment, and other fields.
Core parameters
Accuracy: ±2.5% of full scale (optional 1.5% accuracy grade)
Operating temperature range: -40°C to 85°C
Power supply voltage: 4.75 VDC to 5.25 VDC
Output Type: Voltage Output (Nominal Offset 0.20V)
Size: The width/height/length of the main body is all 7mm, and it is packaged in a square shape.
Typical application
Suitable for pressure monitoring in industrial automation, such as in medical equipment and pneumatic control systems, etc. It has the advantage of surface mounting, which can simplify the installation process.
Specifications:
| Accuracy | ±2.5% of full scale |
| Operating temperature range | -40°C to 85°C |
| Power supply voltage | 4.75 VDC to 5.25 VDC |
| Output Type | Voltage Output |
