Thông tin chi tiết sản phẩm:
|
| áp suất quá tải: | 5x (FS ≤ 40kPa) %fs 2x (fs> 100kpa) %fs 5V | Điện áp cung cấp điện: | 5V |
|---|---|---|---|
| Tín hiệu đầu ra: | 0,5 - 4,5V | Accuracy: | ±2.5 % Span |
| Sự ổn định lâu dài (1 năm): | ±1,0 % Span | Compensation temperature: | 0 - 60°C |
| Làm nổi bật: | gas pressure sensor module,gauge pressure sensor for non-corrosive gases,0-10 KPa pressure sensor with warranty |
||
Product Description:

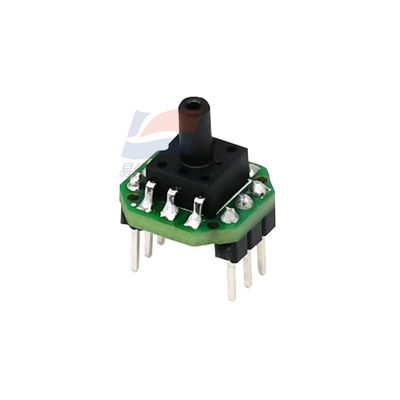

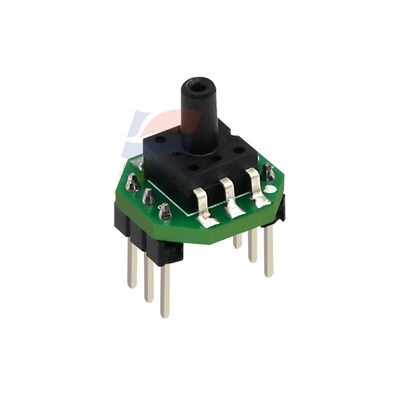

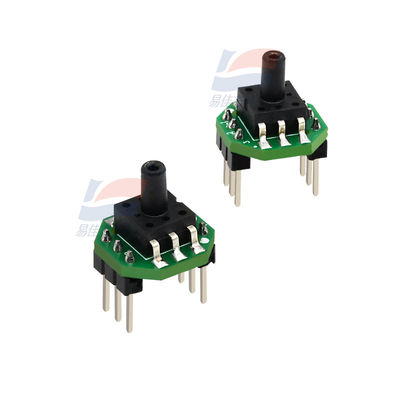

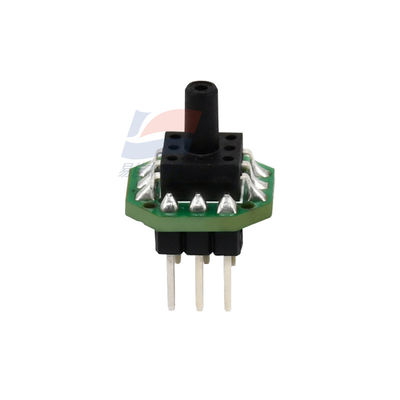

YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
Features:
AGR12 pressure sensor adopts a DIP-like packaging form, which facilitates the insertion and removal of components and is highly suitable for automated assembly equipment. On both sides of the PCB board, there are SOP-encapsulated pressure sensors and signal processing circuit chips installed. These sensors' offsets, sensitivities, temperature drifts, and non-linearities are digitally compensated with the power supply voltage as the reference, generating a calibrated and temperature-compensated standard voltage signal. It is an ideal low-cost and high-precision pressure sensor.
Product model: AGR12
Overload pressure: 5x (FS ≤ 40kPa) %FS 2x (FS > 100kPa) %FS 5V
Power supply voltage: 5V
Output signal: 0.5 - 4.5V
Accuracy: ±2.5 % Span
Long-term stability (1 year): ±1.0 % Span
Compensation temperature: 0 - 60°C
Operating temperature: -30 - 100°C
Storage temperature: -30 - 125°C
Operating current: 4.2mA / 3.8mA
Filter capacitor: 100nF
Output current load: < 5 mA
Specifications:
| Sampling period | >100MS/each time |
| Temperature | -40℃ ~ +80℃ |
| Operating humidity | 0 - 95%RH |
| Temperature | ±0.5℃ |
