Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | -500 ~ 500pa | Độ chính xác điểm không: | 0.3pA |
|---|---|---|---|
| Đọc chính xác: | x3% | Độ lặp lại điểm bằng không: | 0,1pa |
| Làm nổi bật: | digital differential pressure sensor,small size pressure sensor,high reliability pressure sensor |
||

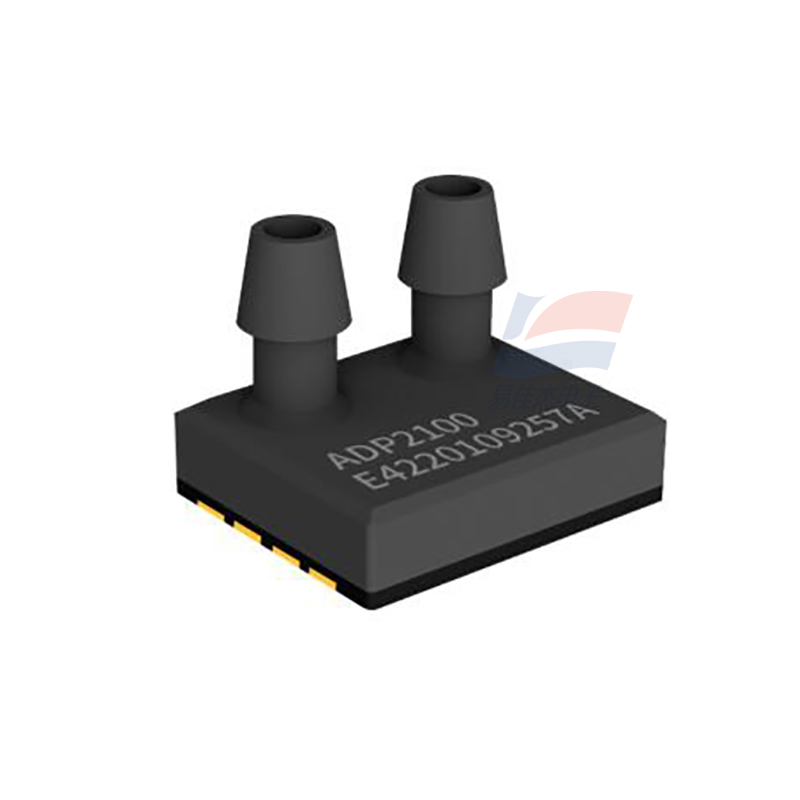

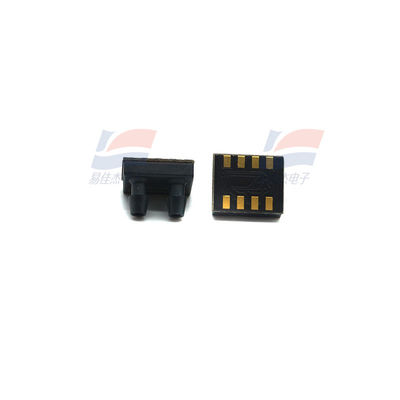

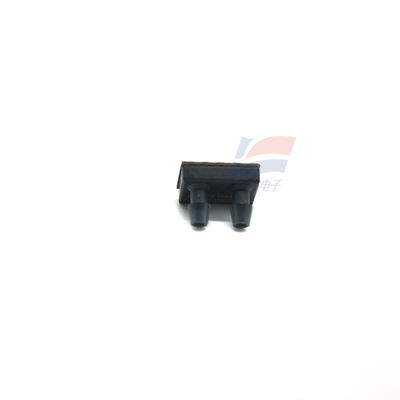

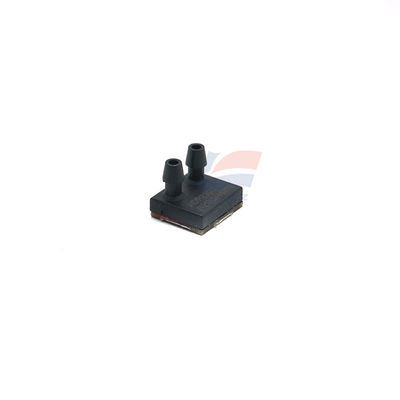

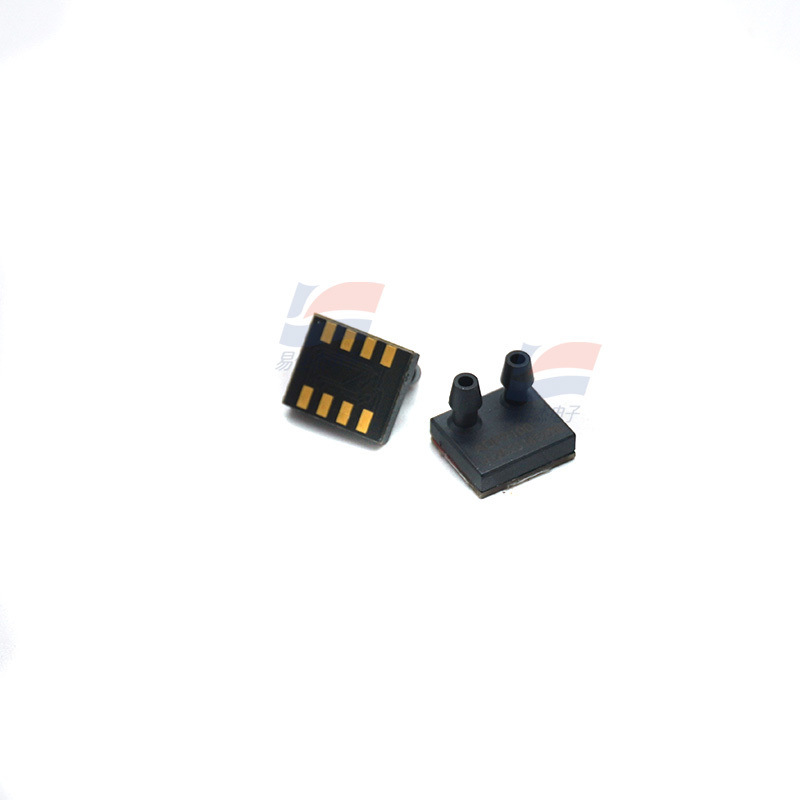

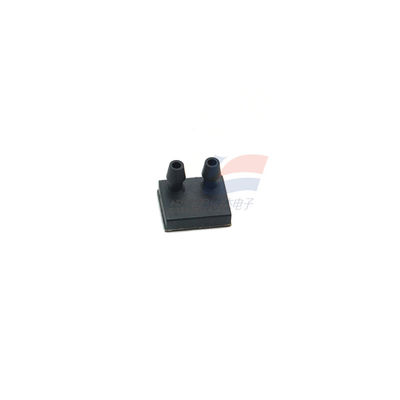

ADP2100 Digital Differential Pressure Sensor Small Size High Reliability
ADP2100 Differential Pressure Sensor
Excellent repeatability, no drift
With temperature compensation
High reliability and long-term stability
High signal-to-noise ratio
Built-in MCU with high processing capability
Short response time and fast measurement speed
Small size and weight
Product Overview:
The ADP2100 sensor is a digital differential pressure sensor in which an internal thermal sensor element measures the differential pressure of a gas. The sensor enables drift-free and extremely accurate differential pressure measurement of air and nitrogen and oxygen. Excellent accuracy also at low dropout pressure. It has good performance in terms of sensitivity, shock resistance and temperature change. The ADP2100 sensor has a standard I2C interface for simple communication and can be easily connected to a microprocessor.
Specification:
| Repeatability | Readingx0.5% |
| Yearly offset | <0.05Pa |
| Response time | 10ms |
| Calibrated gas | Air |
| Compatability | Air,N2,0xygen(non-condese) |
| Voltage | 3.2~3.4 V |
| Current | 3.8 A(typical) |
