Thông tin chi tiết sản phẩm:
|
| Pressure Measurement Range: | - 5 to 125 Pa | Supply Voltage: | 5 V |
|---|---|---|---|
| Sensor Output: | 0.25 to 4 V voltage output | Supply Current: | 4.3 mA |
| Operating Temperature Range: | - 10 to 60 °C | Port Style: | Tube |
| Làm nổi bật: | low range differential pressure sensor,automotive pressure sensor,process control pressure sensor |
||

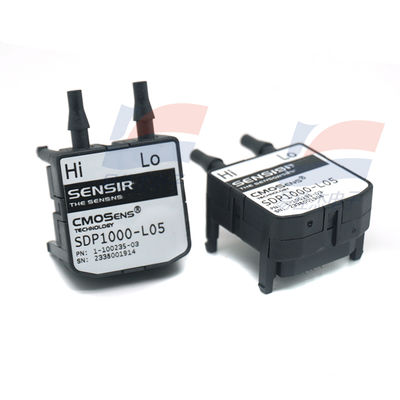

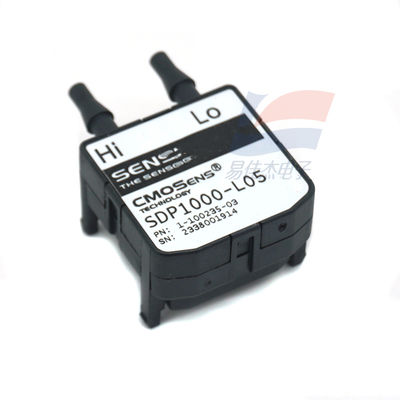

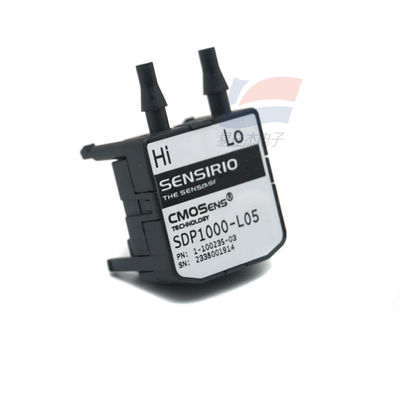

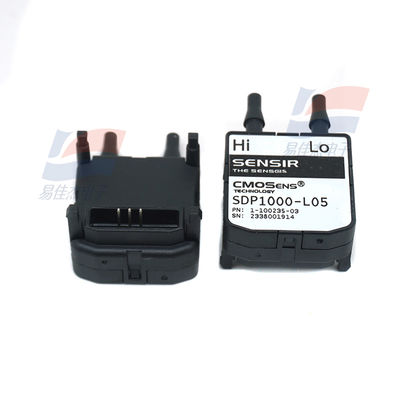

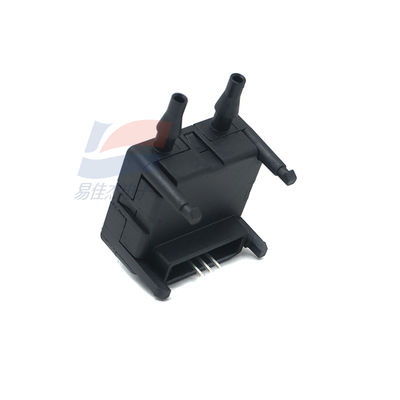

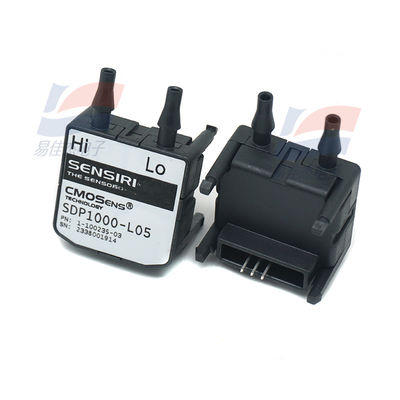

SDP1000-L05 Low - range Differential Pressure Sensor For Automotive Automation Process Control Fields
Product Overview:
The SDP1000 - L05 is mounted in a rugged, chemically inert PPS housing. It features a unique dynamic range, zero offset, and excellent long - term stability. Based on Sensirion's proprietary CMOSens® sensor technology, the sensor element is integrated with amplification and A/D conversion on a single silicon chip.
Application Fields:
It is an ideal choice for demanding applications, such as medical and HVAC systems. It can also be used in automotive, automation, and process control fields.
| Pressure Range | - 5 - 125Pa |
| Accuracy | 0.2% FS / 1.5% m.v. |
| Supply Voltage | 4.75 - 5.25V |
| Average Supply Current | 4300μA |
| Max. Supply Current | 5200μA |
| Output Type | Analog voltage |
| Output Voltage Range | 0.25 - 4V |
| Operating Temperature Range | - 10 - 60°C |
| Storage Temperature Range | - 40 - 80°C |
| Resolution | Up to 0.05Pa |
| Response Time | 40ms |
| Allowable Over - pressure | 1 bar |
| Instantaneous Over - pressure Capacity | 2 bar |
| Dimensions (L×W×H) | 44×30×22.1 |
