Thông tin chi tiết sản phẩm:
|
| Áp lực làm việc: | 10 trong H2O | Độ chính xác: | 1% |
|---|---|---|---|
| Loại đầu ra: | tương tự | phong cách cài đặt: | Qua lỗ |
| Điện áp cung cấp điện hoạt động: | 12V | Gói / Nhà ở: | SIP-4 |
| Làm nổi bật: | medical push-button pressure sensor,electronic pressure sensor for medical devices,XPCL10DTH medical pressure sensor |
||
Product Description:

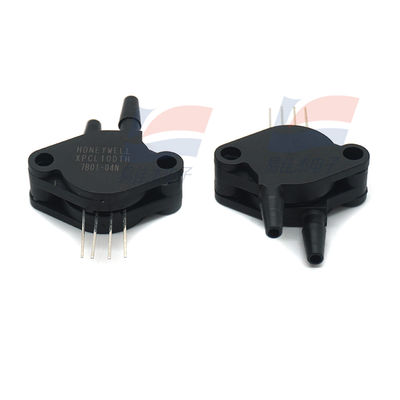

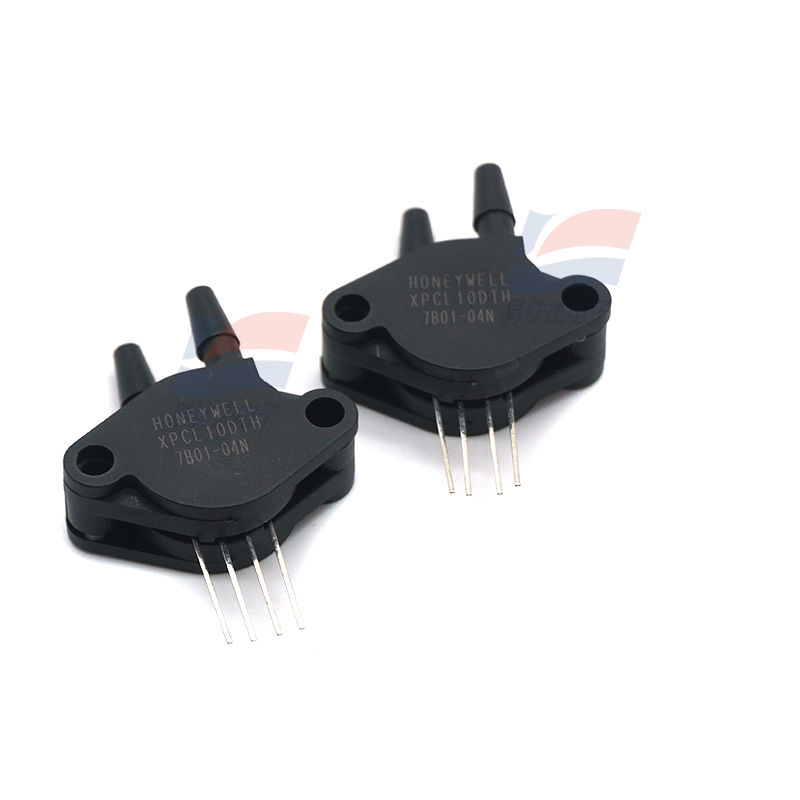

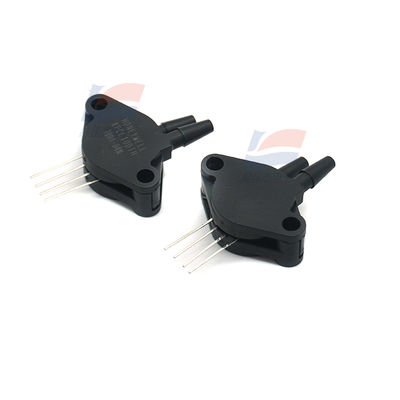

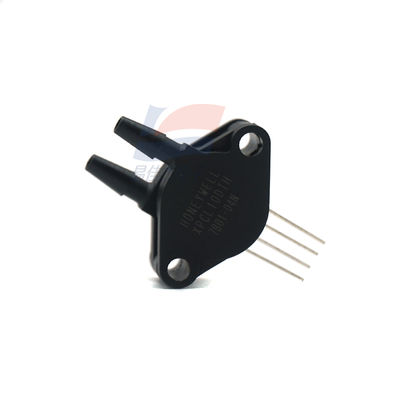

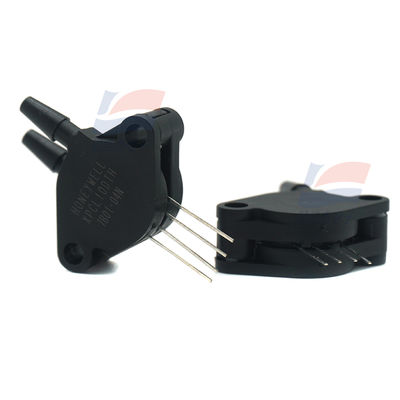

XPCL10DTH Push-Button Interface Pressure Sensor Is Used In Medical Devices
Features:
Function, Application
Compensation/Calibration and Uncompensated/Uncalibrated Board-mounted Pressure Sensors
Description: The XPC/XPCL series and XPXL series sensors integrate silicon microfabrication sensing technology, temperature compensation, and calibration into a complete low-cost package. This series provides an economical solution for design requirements. These piezoelectric pressure sensors use microfabricated silicon chips mounted on ceramics and are protected by plastic covers. Several tube arrangements
Pressure type: Vacuum, Gauge, Differential
Working pressure: 10 in H2O
Accuracy: 1%
Output type: Analog
Installation style: Through Hole
Operating power supply voltage: 12 V
Port type: Dual Radial Barbless
Package / Housing: SIP-4
Minimum operating temperature: -25°C
Maximum operating temperature: +85°C
Series: XPCL
Port size: 0.19 inches
Product type: Board-mounted pressure sensors 5
Subcategory: Sensors
Power supply voltage - maximum: 16 V
Power supply voltage - minimum: 3 V
Specifications:
| Working power current | 1.6 mA |
| Subcategory | Sensors |
| Maximum power supply voltage | 3.3 V |
| Minimum power supply voltage | 3 V |
