Thông tin chi tiết sản phẩm:
|
| Độ chính xác: | 1% | điện áp cung cấp điện: | 5V |
|---|---|---|---|
| Phạm vi nhiệt độ: | 10 ° C đến 60 ° C. | tỷ lệ lỗi: | 1,5% |
| Loại cổng: | không có cổng | Bao bì / Bao vây: | Unibody-4 |
| Làm nổi bật: | MPX2050D silicon pressure sensor,50Kpa barometer pressure sensor,single-chip electronic pressure sensor |
||
Product Description:

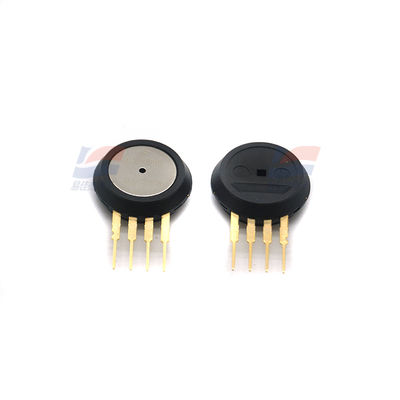

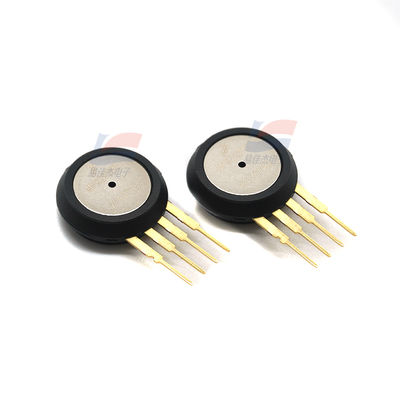

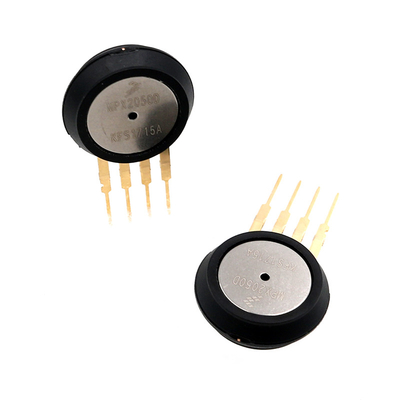

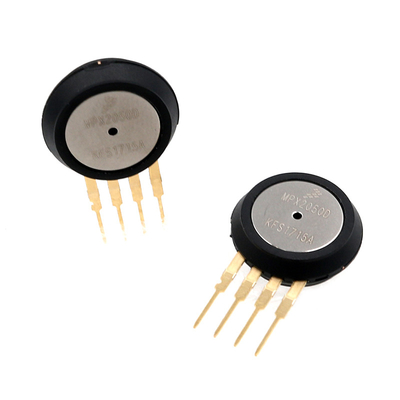

YJJ MPX2050D 50Kpa Single-Chip Silicon Pressure Sensor Is Used For Barometers
Features:
MPX2050D has compensated for the sensitivity of the 50Kpa pressure sensor at 0.8mV.
Overview
The new single-chip silicon pressure sensor. These sensors integrate micro-mechanical technology, thin-film metallization and bipolar processes, and can provide a high-level analog output signal that is proportional to the applied pressure.
Characteristics
The temperature compensation range is from 10°C to 60°C.
Can offer surface mount (SMT) or through-hole (DIP) configurations for the strain gauges.
Durable thermoplastic (PPS) packaging
Designed for the home appliances, consumer electronics, and industrial control markets
The improved axial port is suitable for industrial-grade pipes
With an error rate of 1.5% within the temperature range of +10 to +60℃ and a 0 to 100 mm H2O range, it also has an automatic zeroing function
Pressure difference / gauge pressure, below 115 kPa
We offer a wide range of medium-range pressure sensors, which are used to measure the difference in pressure sources applied to both sides of the sensor (pressure differential), or the difference between the source pressure and atmospheric pressure (gauge pressure).
Purpose:
Height gauge
Barometer
Inhaler
Industrial control
Engine control
Weather station
Product type: Panel interface pressure sensor RoHS:
Pressure Type: Differential
Working Pressure: 0 Pa to 50 kPa
Accuracy: 0.25 %
Output Type: Analog
Installation Style: Through Hole
Working Power Supply Voltage: 10 V
Port Type: No Port
Package / Housing: Unibody-4
Minimum Working Temperature: -40 °C
Maximum Working Temperature: +125 °C
Series: MPXx2050
Package: Tray
Trademark: NXP Semiconductors
Working Power Supply Current: 6 mA
Product Type: Board Mount Pressure Sensors 125
Subcategory: Sensors
Maximum power supply voltage: 16 V
Minimum power supply voltage: 1 V
Part number alias: 935319139117
Unit weight: 1.608 g
Specifications:
| Pressure types | Differential pressure |
| Working pressure | 1Kpa~10Kpa5 |
| Output Type | Analog Voltage Output |
| Output Voltage | 100 mV |
