Thông tin chi tiết sản phẩm:
|
| Phạm vi áp: | ± 1,0 psi | Phạm vi điện trở đầu vào: | 5,5 đến 11,5 kΩ |
|---|---|---|---|
| Phạm vi điện trở đầu ra: | 1,5 đến 3.0 kΩ | Phạm vi điện áp đầu ra (tại ± 1 psi): | ± 14,7 mV phút |
| Thay đổi nhịp theo nhiệt độ: | ± 1,5% điển hình, tối đa ± 4,5% | bù đắp bằng không: | -2 đến +2 mV |
| Làm nổi bật: | 26PC01SMT industrial pressure sensor,medical equipment pressure sensor,HVAC systems pressure sensor |
||

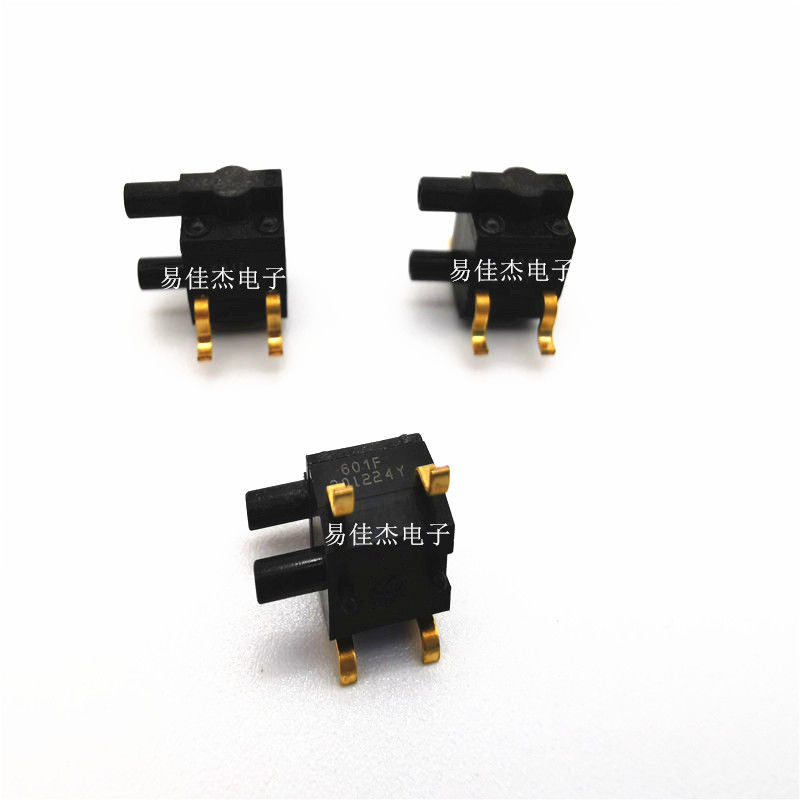

26PC01SMT Pressure Sensor For Industrial Control Medical Equipment HVAC Systems
Product Features:
Applications:
Package & Mounting:
| Pressure Range | ±1.0 psi1 |
| Input Resistance Range | 5.5 to 11.5 kΩ1 |
| Output Resistance Range | 1.5 to 3.0 kΩ1 |
| Output Voltage Range (at ±1 psi) | ±14.7 mV min, ±16.7 mV typical, ±18.7 mV max1 |
| Span Change with Temperature | ±1.5% typical, ±4.5% max1 |
| Zero Offset | –2 to +2 mV1 |
| Zero Offset (25°C to 0°C; 25°C to 50°C) | ±1.0 mV max1 |
| Linearity Error (Percentage of Span) | ±0.50% typical, ±1.75% max1 |
| Repeatability and Hysteresis Error | 0.20%1 |
| Overpressure | 20 psi max1 |
| Input Offset Voltage | (2 μV + 2 mV/150) × 1501 |
| Input Offset Current | 2500 Ω × 200 pA × 1501 |
| Gain Error | 0.5%1 |
| CMRR | 100 dB1 |
| Gain Non - linearity | 50 ppm/min1 |
| 0.1–10 Hz 1/f Noise | 0.7 μV peak - to - peak × 1501 |
| Total Unadjusted Error | ~7 bits1 |
| Total Adjusted Error | ~14 bits1 |
| Supply Voltage | 2.5V–16V DC5 |
| Operating Temperature Range | -40°C to 85°C5 |
| Compensated Temperature Range | 0°C to 50°C3 |
| Storage Temperature Range | -55°C to 100°C3 |
| Soldering Terminal Temperature/Time | 315°C max./10 s max3 |
| Vibration | 10 g at 20 Hz to 2000 Hz3 |
| Shock | 100 g for 11 ms3 |
| Life | 1 million cycles min3 |
| Package Type | 4 - SMD Module5 |
| Dimensions | 7.1x6.1x7.7 mm5 |
| Port Type | Barbless, 0.07 - inch (1.88 mm) diameter tube nozzle5 |
| Accuracy | ±1.75%5 |
| Response Time | <1 ms5 |
| Media Compatibility | Air, gas, liquid6 |
| Mounting Type | PCB, Surface Mount5 |
| Number of Pins | 45 |
| Weight | 500 mg5 |
| Moisture Sensitivity Level | 1 (unlimited) |
