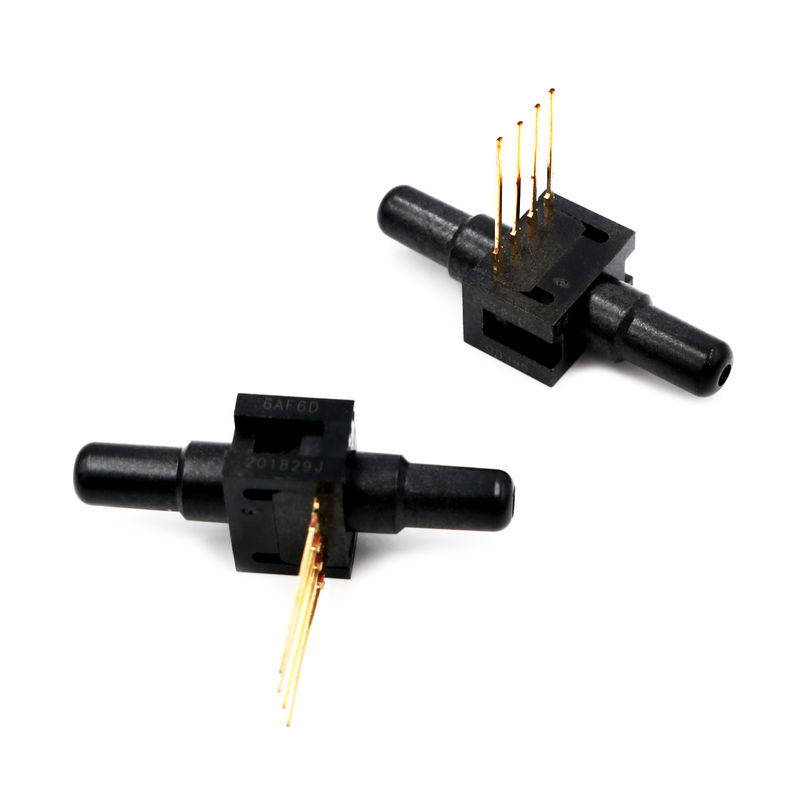

26PCAFA6D Pressure Sensor For HVAC Systems Industrial Control Consumer Electronics

                            26PCAFA6D Pressure Sensor For HVAC Systems Industrial Control Consumer Electronics

Product Features:

• Temperature-compensated and calibrated with low cost.
• Patented conductive-seal elastomeric connection system eliminates traditional wire bonding and ribbon connections, enhancing media measurement compatibility.
• Patented Snap-together structure with diversified measurement port forms.
• Optional pin configurations (1x4 or 2x2), capable of measuring both negative and positive pressures.
• Laser-trimmed resistors ensure excellent device consistency.

Environmental Specifications:

• Operating Temperature: -40°C to +85°C
• Storage Temperature: -55°C to +100°C
• Compensated Temperature: 0 to 50°C
• Shock: Passed 150g qualification test
• Vibration: Complies with MIL-STD-202 Method 213 (150g half-sine, 11ms)
• Compatible Media: Media non-reactive with polyetherimide, silicon, and fluorosilicone seals.

Package & Mounting:

• Compact package with through-hole mounting
• Port configuration: 0.2-inch (5mm) dual male tubes

Applications:

• Medical equipment (e.g., ventilators, fluid pressure monitoring)
• HVAC systems
• Industrial control
• Consumer electronics (e.g., air pressure sensing)
• Automotive applications (e.g., vacuum pressure measurement)
