Thông tin chi tiết sản phẩm:
|
| Cảm biến áp suất kiểu đo: | Giao diện I2C / SPI | Phạm vi áp: | 100KPa ((5KPa/10KPa/20KPa/40KPa/100KPa/200KPa/300KPa |
|---|---|---|---|
| Độ nhạy áp suất: | 0,027 PA/LSB | Sự cân bằng nhiệt độ: | -40℃ ~ 125℃ |
| điện áp hoạt động: | 3.0V/(5.0V) | Chế độ hoạt động hiện tại: | ~ 0,6MA (điển hình) |
| Làm nổi bật: | Automotive Electronics Pressure Sensor,WF100DP Digital Pressure Sensor |
||
Product Description:
WF100DP Digital Pressure Sensor Is Used In Automotive Electronics Field
Features:
KEY FEATURES:
Piezo-resistive silicon micro-machined sensor
Gauge type pressure sensor
I2C / SPI Interface
Pressure range: 100KPa(5KPa/10KPa/20KPa/40KPa/100KPa/200KPa/300KPa
Pressure Sensitivity: 0.027 Pa/LSB
24 Bit Σ-Δ ADC
Temperature Compensation: -40℃ ~ 125℃
Operating voltage 3.0V/(5.0V)
Operating mode current: ~0.6mA (typical)
Sleep Mode current: 0.1uA (typical)

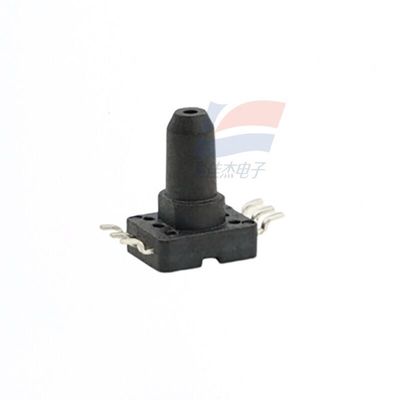

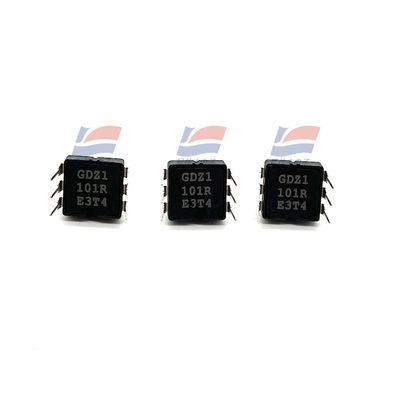

SOP6 or DIP6 package
RoHS compliant and Halogen-free
PRODUCT INTRODUCTION:
WF100DP series product is the pressure sensor which measures gauge pressures. It consists of a silicon micro-machined sensing element chip and a signal conditioning ASIC. The ASIC is equipped with a 24-bit resolution Σ-Δ ADC and outputs a highly precise pressure value as a digital value.
WF100DP series products provides digital output interface. It can achieve ESD robustness, fast response time, high accuracy and linearity as well as long-term stability. All measurement data is fully calibrated and temperature compensated. In addition, it allows for easy system integration.

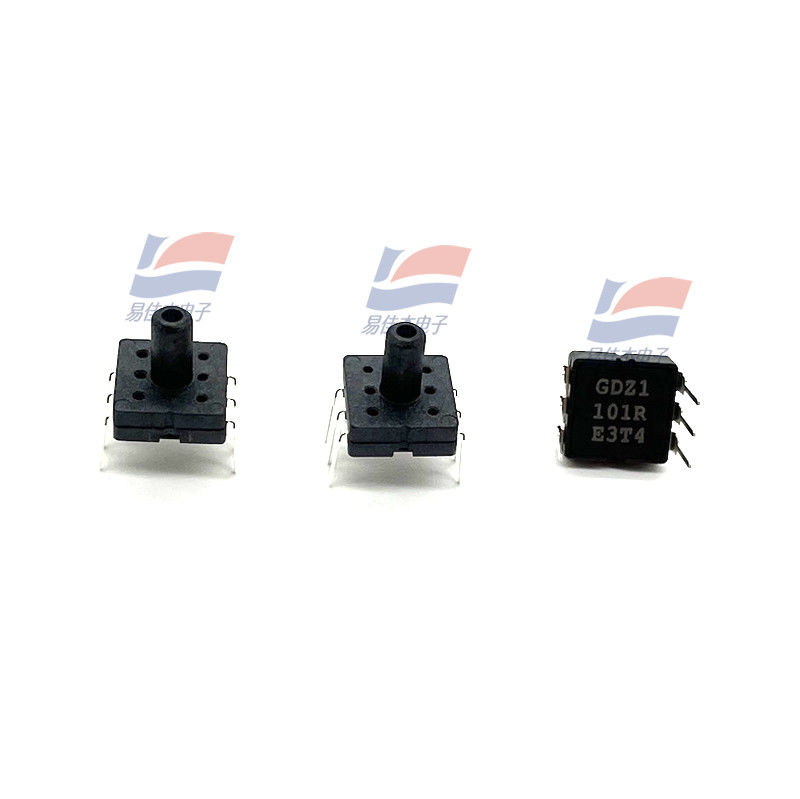

This series pressure sensor use SOP6 or DIP6 package which is suitable for lots application.
APPLICATION
Automobile electronic
Consumer electronics
Household electronic
Industrial monitor and control
Medicine care
Specifications:
| Temperature Compensation | -40℃ ~ 125℃ |
| Operating voltage | 3.0V/(5.0V) |
| Analog voltage output | 0.4 - 2.0 VDC |
| Over-range output | 2.0 V - 2.4 V) |
