Thông tin chi tiết sản phẩm:
|
| Nguồn điện: | DC 5V ± 0,5V | Dòng điện làm việc: | ≈ 15mA |
|---|---|---|---|
| đầu ra: | Xung hở mạch NPN | Cấp độ cao: | ≈ VCC |
| Cấp thấp: | ≈ 0V | Chịu được điện áp: | 1,0 MPa |
| Nhiệt độ trung bình: | 0 - 60 | Nguyên tắc: | Đường xoáy Karman |
| Làm nổi bật: | Vortex liquid flow sensor for industrial cooling,Water cooling flow sensor with warranty,Laser equipment liquid flow meter |
||
Product Description:

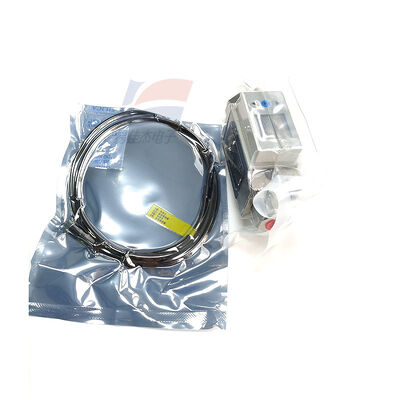

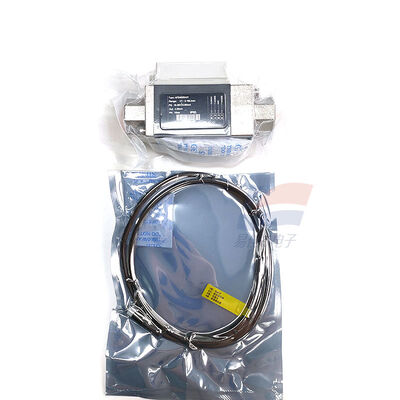

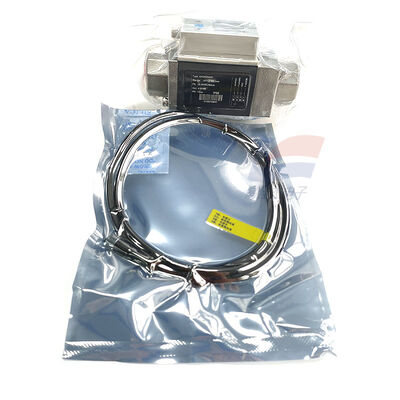

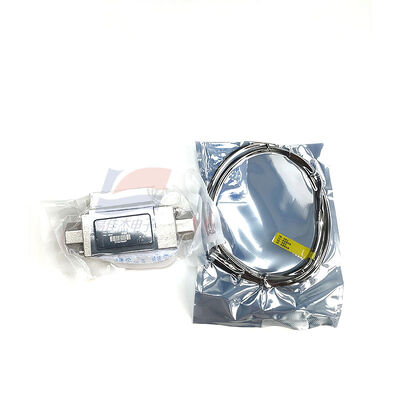

YJJ AFD4020A31 2-16L/min Vortex Liquid Flow Sensor for Industrial Water Cooling / Laser Equipment
Features:
I. Core Parameters
Range specification (standard for AFD4020)
Liquid flow rate: 2 - 16 L/min (clear water / coolant), minimum startup flow rate 2 L/min
Interface thread: G3/8 (3 external threads), M8 electrical outlet
Model A31 definition
A: NPN pulse collector open-circuit output (standard pulse signal, 1L ≈ fixed pulse count)
31: No temperature measurement, no display, basic standard version (without needle valve)
Electrical parameters
Power supply: DC 5V ± 0.5V, working current ≈ 15mA
Output: NPN open-circuit pulse, high level ≈ VCC, low level ≈ 0V, can be directly connected to single-chip microcomputer IO
Pressure resistance: ≤ 1.0 MPa, medium temperature 0 - 60℃ clear water, anti-freezing liquid
Principle: Karman vortex street, internal no mechanical rotor, no wear, resistant to impurities and not prone to clogging
Accuracy: ± 3% FS, repeatability ± 1%, low pressure loss
II. Output Selection Supplement (same series available for selection)
PN: PNP pulse; V: 1 - 5V analog; mA: 4 - 20mA; 485: RS485 Modbus-RTU
III. Product Usage
1. Water purification / drinking water machine / coffee machine
Quantitative water output control, pure water machine flow measurement, coffee machine water output counting, water heater water flow monitoring
2. Industrial water cooling / laser equipment
Laser water cooling circulation flow detection, PCB water cooling machine flow break protection, industrial control water cooling water shortage alarm
3. New energy / energy storage
Energy storage PACK liquid cooling flow collection, charging station water cooling circuit flow statistics
4. Environmental protection / instruments
Laboratory small water machine, water quality analyzer, small dosing equipment quantitative water control
IV. Selection Distinction
AFD4020: 2 - 16 L/min (A31 this model)
AFD4040: 5 - 40 L/min
AFD4100: 10 - 100 L/min
Specifications:
| Liquid flow rate | 2 - 16 L/min |
| Minimum flow rate | 2 L/min |
| Interface thread | G3/8 |
| A | NPN pulse collector open-circuit output |
| 1L | ≈ Fixed pulse count |
| 31 | No temperature measurement |
