Thông tin chi tiết sản phẩm:
|
| Sự chính xác: | ±(1,5% + 0,5% FS) | Tỷ lệ phạm vi: | 100:1 (Phạm vi rộng) |
|---|---|---|---|
| Thời gian đáp ứng: | 100 mili giây | Áp suất vận hành: | 15 thanh |
| Làm nổi bật: | MEMS gas mass flowmeter with LCD,Medical air flow sensor with warranty,MF5006 gas flowmeter digital display |
||

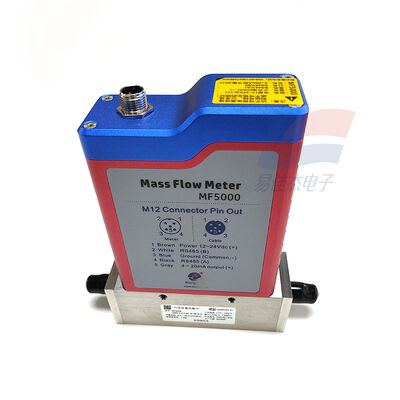

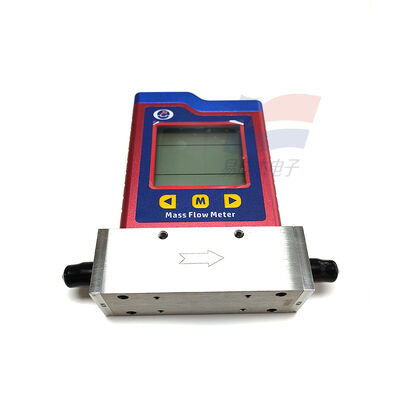

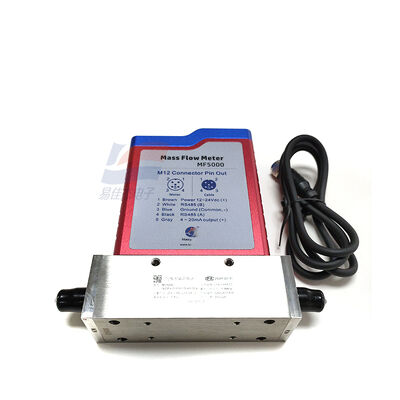

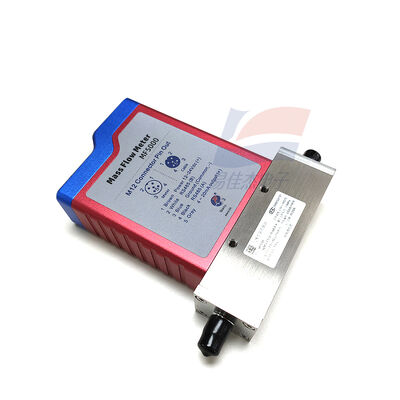

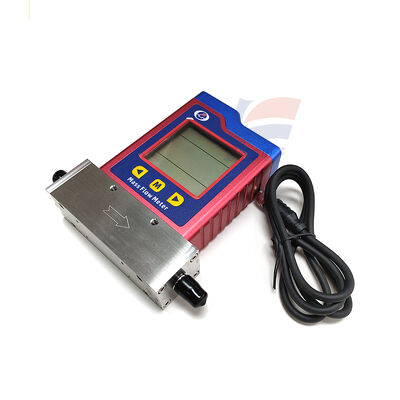

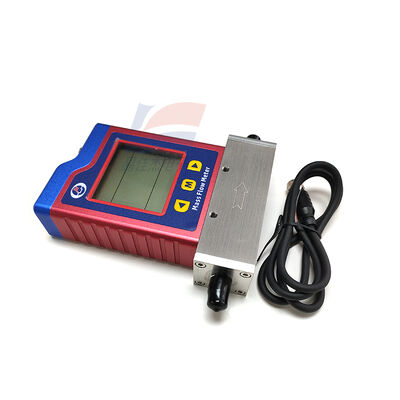

MF5006-N2M-E-0.5-50-15-AB-D-A Gas Mass Flowmeter MEMS With LCD
Principle:** MEMS thermal mass flow measurement; directly measures mass flow without the need for temperature or pressure compensation.
Features:
* High sensitivity for low-flow ranges; low pressure drop
* Explosion-proof design, suitable for industrial and hazardous environments
* Simultaneous analog and digital communication capabilities, facilitating network integration
* Equipped with a local display for direct on-site reading
Typical Applications
* Proportioning and metering of nitrogen, compressed air, and oxygen
* Semiconductor, photovoltaic, and welding shielding gas applications
* Gas supply systems for chemical processing, laboratories, and medical equipment
* Applications requiring explosion protection, small pipe diameters, and wide flow ranges
Specification:
| Measured Medium | Nitrogen (N₂); also capable of measuring Air, O₂, Ar, and CO₂ |
| Operating Temperature | -20 to +65°C |
| Power Supply | 12–24 VDC, approx. 50 mA |
| Output | 4–20 mA (Isolated) + RS485 (Modbus) |
| Display | LCD (Instantaneous Flow + Cumulative Flow) |
| Material | 304 Stainless Steel (Gas Contact Parts), Aluminum Alloy (Housing) |
| Protection / Explosion Proof | IP65, Ex ib IIC T4 Gb |
