Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | 0 ~ 300l/phút | Sản lượng: | RS485 |
|---|---|---|---|
| Độ chính xác: | ± 3%fs | Khả năng lặp lại: | 0,5%FS |
| Làm nổi bật: | gas mass flow meter digital display,high sensitivity flow meter,medical air flow sensor |
||

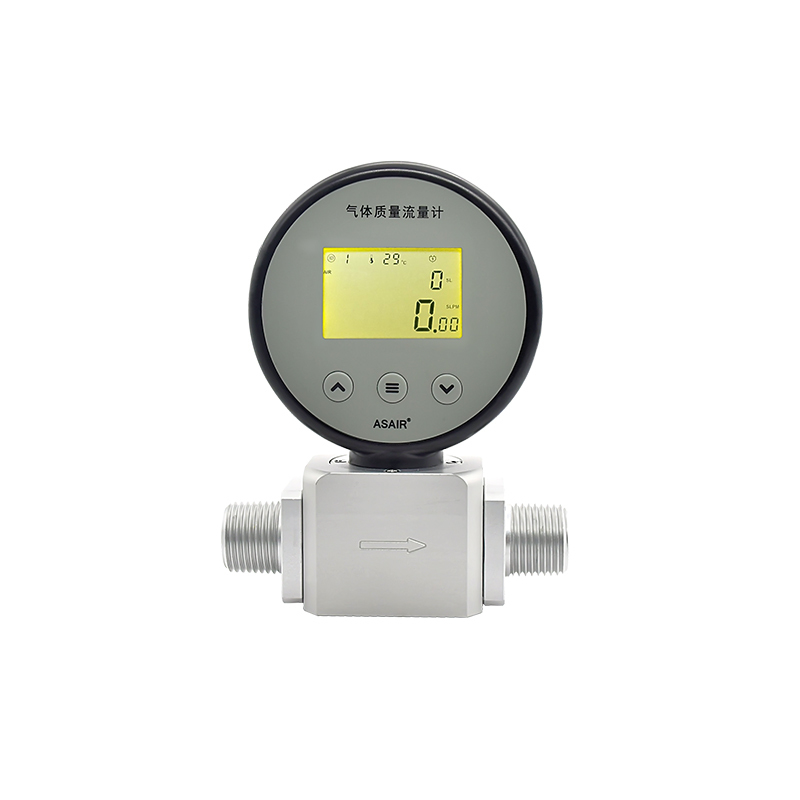

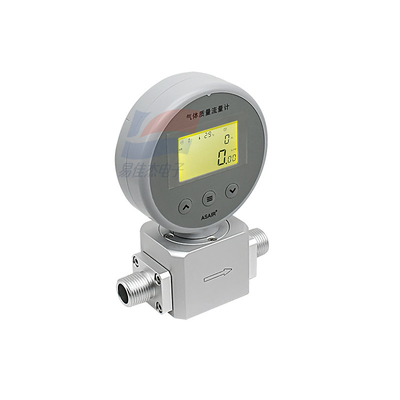

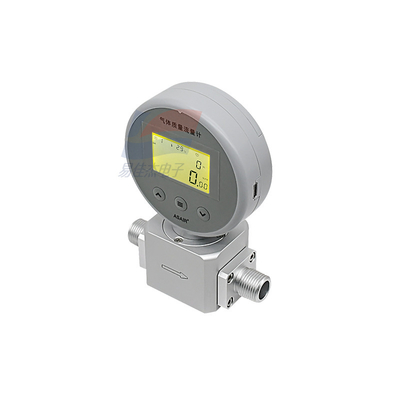

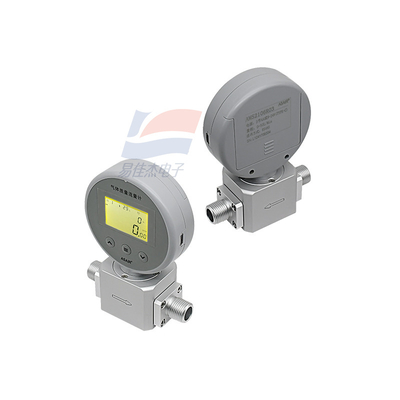

AMS2106 Gas Mass Flow Meter High Sensitivity Digital Display
AMS2106 Gas Mass Flow Meter
Flexible use
Cumulative flow measurement
Mixed gas detection
High sensitivity
Flexible output method
High stability in full range
Portable design
Can switch battery power supply and external power supply model will.
AMS2106 is an intelligent digital gas mass flow meter based on semiconductor technology. MEMS flow sensor chip independently developed by Aosong. And, it uses thermal mass flow measurement without temperature and pressure compensation, ensuring the high-precision calculation of the flowmeter and high sensitivity., Can keenly sense the very small starting flow, and start to calculate. Our flow sensor has full range, high stability, high accuracy, and good repeatability. Actually, it can support the measurement of multiple gases and allow customers to perform on-site calibration of some special gases. Its response speed is fast, the output mode is flexible, and it has the function of over-range alarm indication. The sensor uses battery power, can switch the external power supply mode at will, is portable design, and adopts NPT connection mode. Although, the mass flow meter is easy to install and use and can customize the interface according to customer needs.
Specification:
| Response time | ≤2s |
| Power supply Batteryor external | 9~24V DC |
| Display | Segment code screen |
| Working pressure | 0.8MPa |
| Standard Calibration | Gas air(25℃℃,1 atm) |
| Operating temperature | -10~+60°C |
| Wire | Type-C |
| Power consumption | ≤1W |
| Shell material | ABS |
| Duct material | 6061 aluminum alloy |
