Thông tin chi tiết sản phẩm:
|
| Flow Range: | 0 - 2000 sccm | Accuracy: | ±(2.0 + 0.5FS)% |
|---|---|---|---|
| Range Ratio: | 100:1 | Response Time: | 10 ms |
| Operating Pressure: | 0.5 MPa | Operating Temperature: | 55℃ |
| Làm nổi bật: | medical gas mass flow sensor,anesthesia machine flow sensor,endoscope air flow sensor |
||

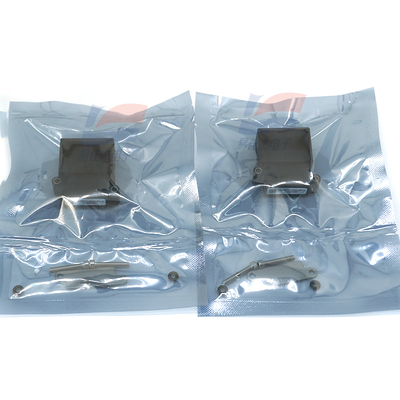

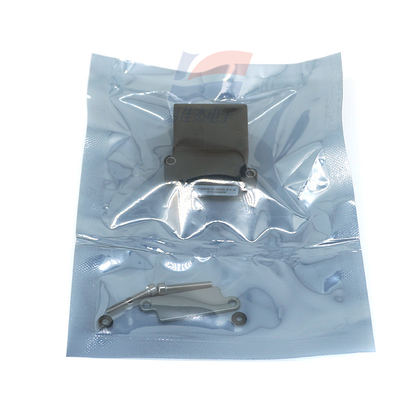

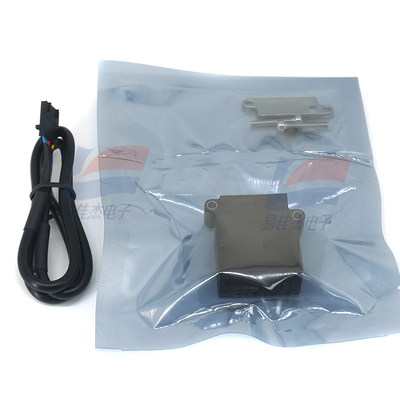

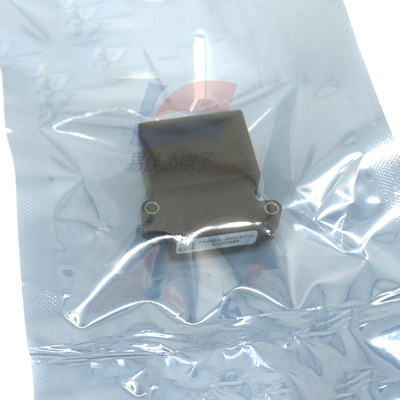

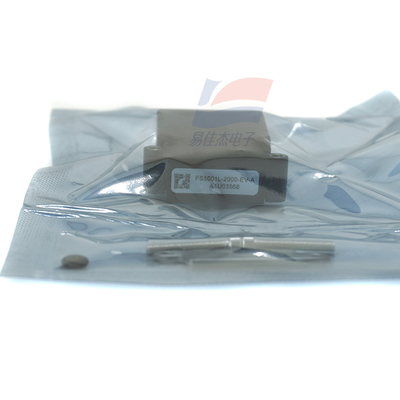

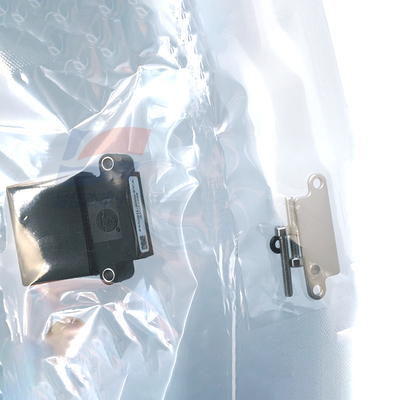

FS5001L-2000-EV-A Gas Mass Flow Sensors For Medical Equipment Such As Anesthesia Machines Endoscopes
Product Features:
Gas Types Supported:
It can detect dry and clean gases such as air, nitrogen, oxygen, argon, and carbon dioxide. The code “A” in the model represents air. If other gases are required, please contact the manufacturer.
Application Fields:
It is widely used in medical equipment such as anesthesia machines and endoscopes, industrial applications such as welding machines, laser equipment, and gas mixing control, as well as environmental monitoring such as air samplers. It can also be used in analytical instruments, pharmaceutical process control, precision chemical instruments, scientific research experiments, and medical automation.
|
Item |
Parameter |
Unit |
|---|---|---|
| Model | MF4003 - 2 - R - V - A | / |
| Size | Φ25 mm × 80 mm | mm |
| Weight | 75 g | g |
| Measurement Range | 0–2 SLPM | SLPM |
| Accuracy | ±(1.5% + 0.2% F.S.) | / |
| Operating Temperature | -10°C to +55°C | °C |
| Power Supply | 8–24 VDC | VDC |
