Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | 0–100 trang/phút KHÔNG | Quá tải tối đa: | 1500 trang/phút KHÔNG |
|---|---|---|---|
| Độ nhạy: | 0,55 ± 0,11 A/ppm | Thời gian đáp ứng t90: | 15 giây |
| Làm nổi bật: | 7Series nitric oxide gas sensor,NO electrochemical gas detector sensor,AF704-400 gas sensor with warranty |
||

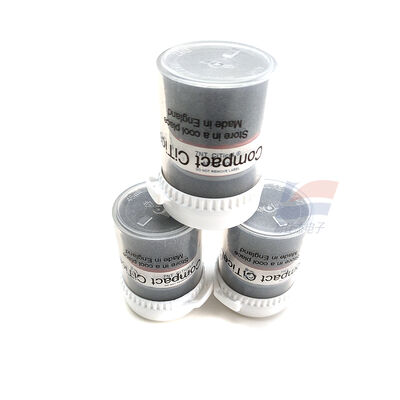

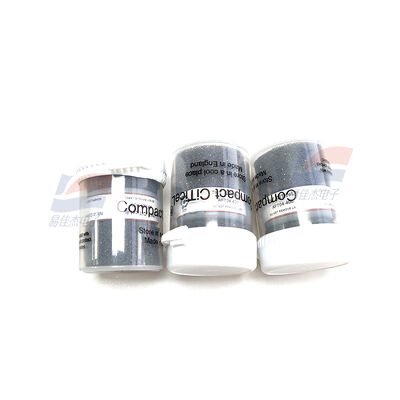

7NT AF704-400 Nitric Oxide NO Electrochemical Gas Sensor 7Series For Gas Detector
Typical Applications
* NO concentration monitoring for boilers and industrial flue gas emissions
* Automotive exhaust testing equipment
* Online monitors for atmospheric pollution sources
* Portable toxic gas detectors and fixed online gas alarms
* Real-time NO detection in flue gas for denitrification (SCR) processes
Specification:
| Resolution | 0.5 ppm (with OEM circuitry) |
| Baseline drift (clean air) | 0 to +3 ppm NO equivalent |
| Recommended bias voltage: | +300 mV |
| Recommended load resistor: | 10 Ω |
| Electrode structure: | 3-electrode electrochemical sensor |
| Operating temperature: | -20°C to +50°C |
| Operating humidity: | 15% to 90% RH (non-condensing) |
| Service life: | Nominally 2 years in air |
| Long-term drift: | ≤2% of signal value per month |
| Storage conditions: | 6 months in original sealed container |
| Package: | Industry-standard 7-series round 4-pin through-hole package |
| Outer diameter: | Φ32 mm; Height: 16.6 mm |
| Weight: | 17 g |
| Mounting method | PCB socket mounting |
