Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | 0 - 20 ppm | Nghị quyết: | 0,01 ppm |
|---|---|---|---|
| Giới hạn phát hiện: | 0,05 ppm | T90 Thời gian phản ứng: | ≤ 30 giây |
| điện áp cung cấp: | DC 5,0V ± 0,1V | Hoạt động hiện tại: | <5 Ma |
| Tín hiệu đầu ra: | 1. Cổng nối tiếp TTL UART | Điện áp tương tự: | 0,4 - 2,0V |
| Làm nổi bật: | YJJ ZE03-NO2 NO2 gas sensor module,electrochemical NO2 sensor 0-20ppm,air quality monitoring NO2 sensor |
||
Product Description:

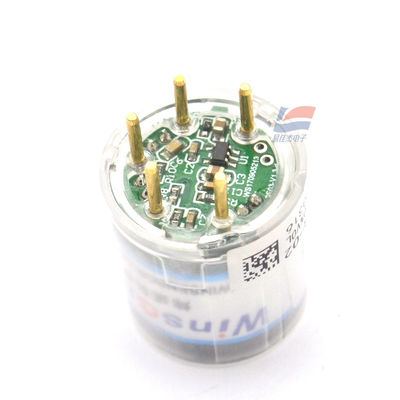

YJJ ZE03-NO2 Electrochemical NO2 Gas Sensor Module 0-20ppm for Atmospheric Air Quality Monitoring
Features:
I. Basic Information
Model: ZE03-NO2
Gas: NO₂ - Nitrogen Dioxide
Principle: Three-electrode electrochemical integrated module (sensor + amplification circuit + temperature compensation + calibration program)
Shape: Φ23.3 × 31.2mm, straight insertion with three-pin terminals
II. Core Electrical Parameters (25℃) Table
Project Technical Parameters
Measurement Range: 0 - 20 ppm
Resolution: 0.01 ppm
Detection Lower Limit: ≤ 0.05 ppm
T90 Response Time: ≤ 30 s
Power Supply Voltage: DC 5.0V ± 0.1V
Operating Current: < 5 mA (Low Power Consumption) Winsen
Output Signal: 1. TTL Serial Port UART (9600 baud)
2. Analog Voltage: 0.4 - 2.0V
Operating Temperature: -20℃ - +50℃
Humidity Conditions: 15% - 90% RH, No Condensation
Service Life: ≥ 24 Months
Zero Point Drift: Small, Suitable for Long-Term Continuous Online Monitoring
III. Product Features
Integrated Factory Calibration, No Need to Build Amplifier Circuit, Power On Direct Reading of Concentration Value, Shortens Development Cycle;
Three Electrode Structure, Effectively Suppresses Cross-Interference of Ozone, Sulfur Dioxide, etc.;
Built-in Temperature Compensation Circuit, Small Temperature Drift, Stable Measurement in Outdoor Environment;
Digital + Analog Dual Output, Compatible with Single-Chip Microcontrollers, Transmitter Board Development;
Compact Size, Suitable for In-Building Installation in Small Instruments, Resistant to Moisture and Not Easily Poisoned Zhengzhou Winsen Electronics Technology Co., Ltd.
IV. Main Applications
1. Atmospheric Air Quality Monitoring (Main Application)
Micro-grid Air Station, Urban Road Exhaust Monitoring Equipment;
Air Quality Online Monitoring Terminal for Residential Areas, Factories, Parks;
Long-Term Sampling Record of Indoor and Outdoor NO₂ Air Pollution.
2. Industrial Gas and Exhaust Detection
Simple Detection of Nitrogen Oxides in Boilers, Internal Combustion Engines, Diesel Exhaust;
NO₂ Toxic Exhaust Leakage Monitoring in Smelting, Chemical Industry, Nitric Acid Workshop;
Unorganized Emission Gas Inspection of Polluting Enterprises.
3. Industrial Safety Protection
Alarm Probe for Nitrogen Dioxide Leakage in Chemical Workshops;
Motor Vehicle Exhaust Monitoring in Tunnels, Underground Garages;
Detection of Nitric Acid Volatile Gas Concentration in Laboratories.
4. OEM Instrument Accessories
Portable Multi-Parameter Gas Detector;
Fixed NO₂ Gas Transmitter;
Atmospheric Sampling Analyzer, Environmental Monitoring Internet of Things Module.
Specifications:
| Detection gas | NO2 |
| Size | Φ23.3 × 31.2 mm |
| Power supply | DC 5V |
| Measurement range | 0 - 20 ppm |
| Operating temperature | -30°C to +55°C |
