Thông tin chi tiết sản phẩm:
|
| Nguyên tắc đo lường: | Điện hóa | Phạm vi đo: | 0 trận100 ppm |
|---|---|---|---|
| Độ nhạy: | 300–480 nA/ppm @20 ppm SO₂ | Thời gian đáp ứng: | T90 < 40 giây |
| Làm nổi bật: | SO2-BF sulphur dioxide gas sensor,electrochemistry gas sensor high precision,sulphur dioxide monitoring sensor |
||

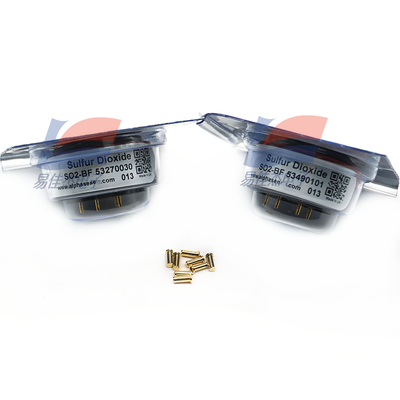

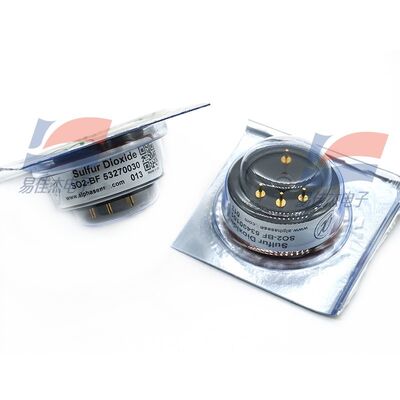

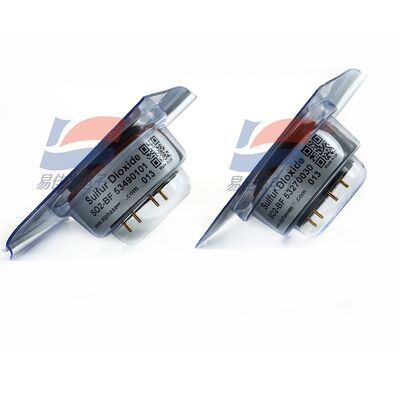

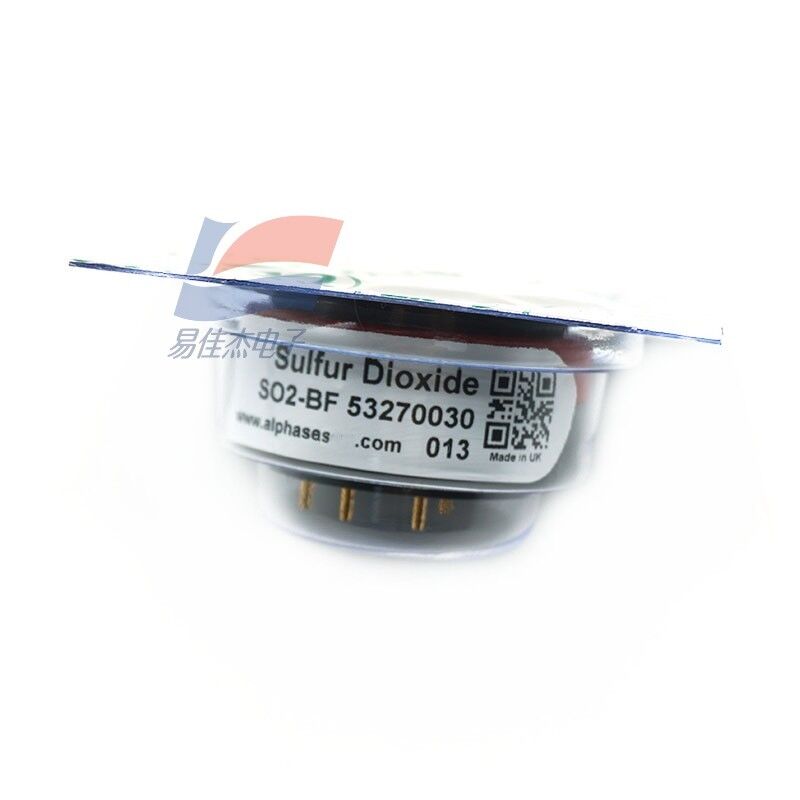

SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring
The SO2-BF electrochemical sulfur dioxide (SO₂) gas sensor, belonging to the B series (32mm diameter), is used for high-precision monitoring of SO₂ in stationary pollution sources and ambient air.
Typical Applications:
* Flue Gas Emission Monitoring (CEMS): SO₂ detection in flues of power plants, steel mills, petrochemical plants, etc.
* Ambient Air Quality Monitoring: Urban stations, industrial zone boundary stations.
* Semiconductor Cleanrooms: ppb-level SO₂ pollution control.
* Petrochemical and Chemical Industries: Process leak and safety monitoring.
Specification:
| Resolution | <0.1 ppm; Zero drift <0.1 ppm/year |
| Linearity | ±2 ppm (full scale) |
| Operating conditions | Temperature -30～50℃; Humidity 15%–90% RH; Pressure 80–120 kPa |
| Lifespan | >24 months (2-year warranty) |
