Thông tin chi tiết sản phẩm:
|
| khí có thể phát hiện: | Clo (Clz) | Phạm vi phát hiện: | 0-10 ppm |
|---|---|---|---|
| Quá tải tối đa: | 50 ppm | Dòng điện đầu ra: | 600 +-150 nA/ppm |
| Làm nổi bật: | electrochemical chlorine gas sensor,low power CL2 gas sensor,3 electrode chlorine sensor |
||

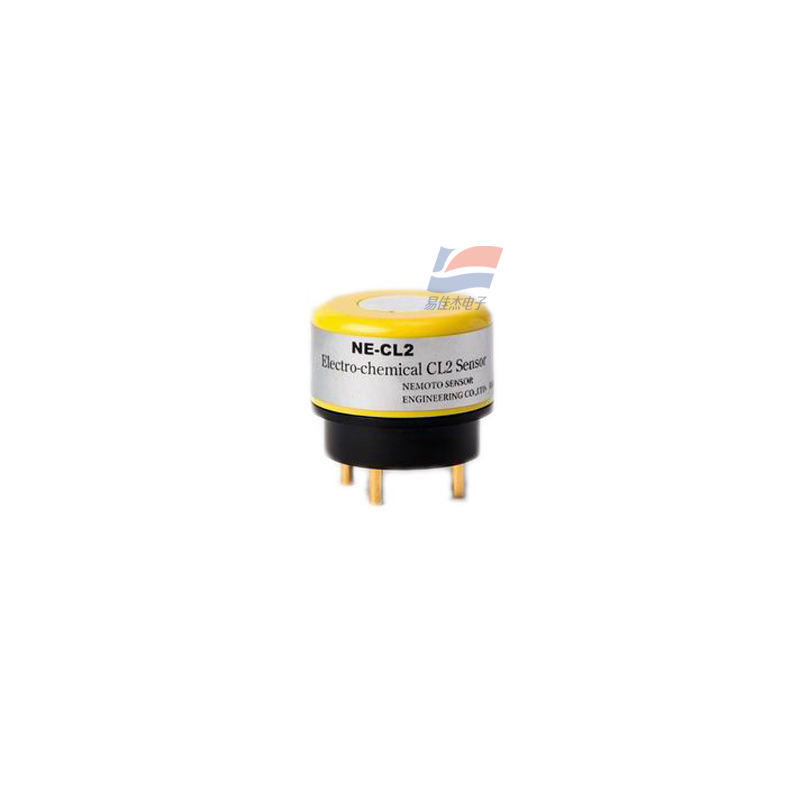

NE4-CL2 Electrochemical Chlorine CL2 Gas Sensor 3 Electrode Low Power
General Description:
The NE4-CL2 is an electrochemical gas sensor with 3 electrodes for the detection of Chlorine (Cl2) in a variety of industrial and commercial gas detection applications.
Exhibiting high performance with long-term stability, this compact (20.4mm dia) sensor is suitable for portable Gas Detection Instruments or Fixed Gas Detection heads.
* 3-Electrode design for greater stability
* Compact, leak-proof enclosure
* Resistant to shocks and vibration
* Linear output
* Highly specific to target gas
* Unaffected by humidity
* Low Power consumption
* Very Low Long term drift
Specification:
| Zero Offset (20°C) | < +/- 0.2 ppm equivalent |
| Reproducibility | +/- 2% |
| Output drift in air | Less than 2% / month |
| Response time (90%) | < 40 seconds |
| Temp. depend. in air | < +/- 0.5 ppm (-20 to 50°C) |
| Expected lifetime | >2 years |
