Thông tin chi tiết sản phẩm:
|
| Phạm vi đo tiêu chuẩn: | 0-100 ppm | Giới hạn đo tối đa: | 200 ppm |
|---|---|---|---|
| Độ nhạy: | (0,9±0,3) uA/ppm | Nghị quyết: | 0,1 trang/phút |
| Thời gian đáp ứng: | < 120 giây | Điện áp Bias: | 300mV |
| Làm nổi bật: | Carbon Disulfide gas sensor,CS2 gas detection sensor,Petrochemical CS2 gas sensor |
||

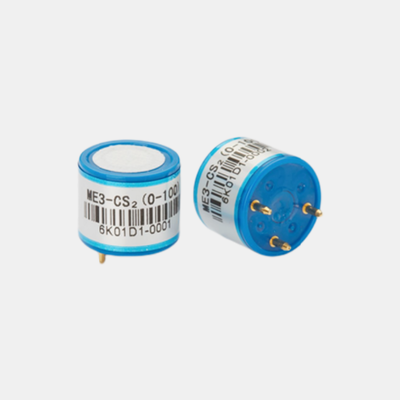

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical
Product Features:
Low power consumption, high accuracy and high sensitivity.
Wide linear range, strong anti‑interference capability.
Excellent repeatability and stability.
Temperature compensation with superior linear output.
UART and PWM output available.
Long service life (up to 2 years).
Resists moisture interference, no poisoning.
Applications:
Petroleum & petrochemical industry.
Pharmaceutical manufacturing.
Environmental protection and air quality monitoring.
| Target Detection Gas | Carbon Disulfide (CS2) |
| Standard Measurement Range | 0-100 ppm |
| Maximum Measurement Limit | 200 ppm |
| Sensitivity | (0.9±0.3) uA/ppm |
| Resolution | 0.1 ppm |
| Response Time | < 120 s |
| Bias Voltage | 300 mV |
| Recommended Load Resistance | 10 Ω |
| Repeatability | < 2% of output value |
| Long-term Stability (per month) | < 2% |
| Zero Drift (-20℃ to 40℃) | 4 ppm |
| Operating Temperature Range | -20℃ to 50℃ |
| Operating Humidity Range | 15% to 90% RH (non-condensing) |
| Operating Pressure Range | Standard atmospheric pressure ± 10% |
