Thông tin chi tiết sản phẩm:
|
| Phạm vi: | 0 - 35% thể tích | Tín hiệu đầu ra: | 9 - 13 mV |
|---|---|---|---|
| Thời gian đáp ứng t90: | <5 giây | Nhiệt độ hoạt động: | 0 ℃ - 50 |
| Phạm vi áp suất: | 700–1750 hPa | Tuổi thọ sử dụng: | 6 năm |
| Lỗi tuyến tính: | 0 - 2% ± 0,1% | Trở kháng tải: | > 1MΩ |
| Làm nổi bật: | YJJ I-01 oxygen sensor 6-year lifespan,ITG electrochemical oxygen sensor 0-35%VOL,oxygen gas sensor with long lifespan |
||
Product Description:

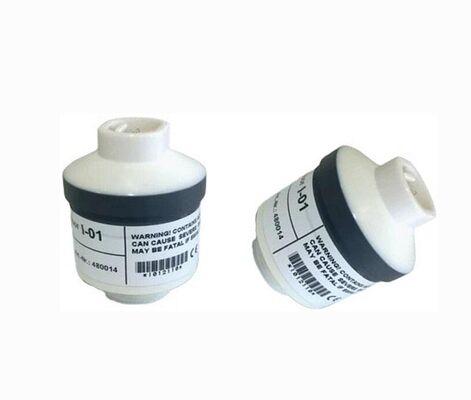

YJJ I-01 (ITG) Oxygen O2 Electrochemical Sensor 0-35%VOL A 6-Year Lifespan
Features:
Brand: German ITG (IT Dr. Gamber)
Model: I-01 (Industrial-grade Galvanic Oxygen Sensor with Long-life Oxygen Battery)
Detected Gas: O₂ Oxygen
II. Core Technical Parameters
Range: 0–35% VOL
Output Signal: 9–13 mV (20.9% O₂ in air)
Resolution: 0.1% VOL
Response Time T90: < 5s, Ultra-fast Response
Operating Temperature: 0℃–50℃
Pressure Range: 700–1750 hPa
Service Life: 6 years, Ultra-long Service Life (far superior to conventional 2–3 year oxygen sensors)
Linear Error: 0–2% ± 0.1%; 2.1–35% ± 0.5%
Interference Resistance: Resistant to CO, CO₂, propane, hydrogen interference, strong stability in industrial environment
Pin: 3-pin socket type
Load Resistance: > 1MΩ
III. Main Applications
Industrial Gas Analyzer: Enclosed spaces, pipelines, boilers, metallurgical oxygen content monitoring
Medical Equipment: Ventilators, anesthesia machines, oxygen generators oxygen concentration detection
Environmental / Municipal Industries: Gas, sewage treatment, coal mines, power, food processing
Portable / Fixed Oxygen Detector, Oxygen Safety Monitoring for Confined Space Operations
Alternative to OOA101, O2-A2, used for equipment requiring long service life and high stability
Specifications:
| Overload | 0–35%VOL |
| Response time | 5 s |
| Resolution | 0.1% VOL |
| Sulfur dioxide detection range | 700–1750hPa |
| Sensitivity | 450-750 na/PPM |
