Thông tin chi tiết sản phẩm:
|
| Khu vực nhạy cảm: | 1,6×1,6 mm | Trường nhìn: | 105 độ |
|---|---|---|---|
| Điện trở nhiệt điện: | 120±30 KΩ | Điện áp nhiễu: | 45 nV/Hz 1/2 |
| Làm nổi bật: | MRT511 thermopile temperature sensor,MEMS TO-46 metal temperature sensor,non-contact gas temperature sensor |
||

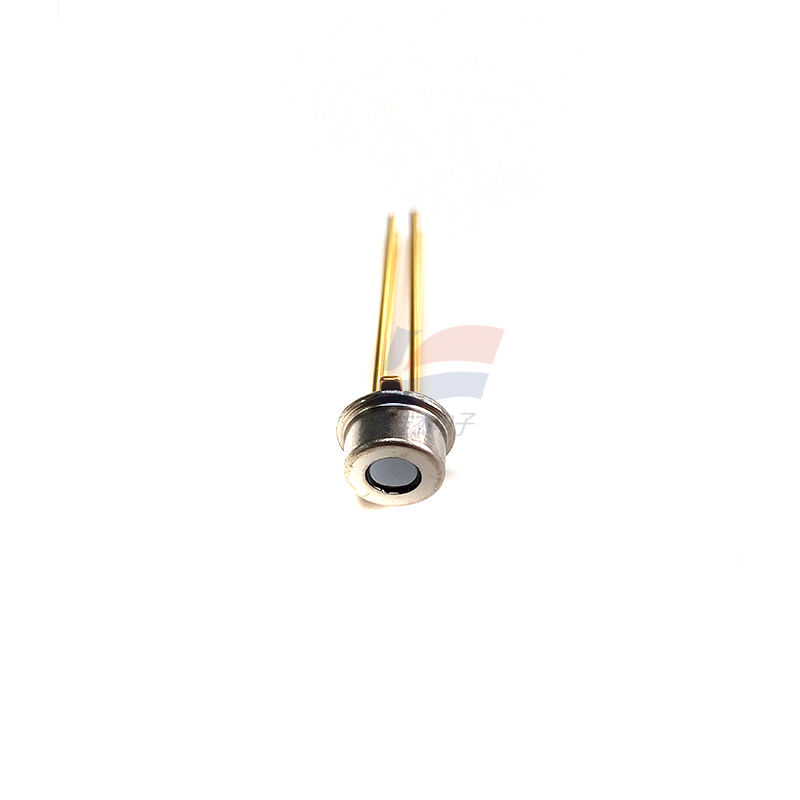

MRT511 Thermopile Temperature Sensor MEMS TO-46 Metal Non-contact Temperature
Features
* TO-46 metal package
* High sensitivity
* Quick response, Good stability
* High filter transmittance
* High precision NTC
Applications
* Non-contact temperature measuring
* Infrared thermometer, such as ear temperature and forehead temperature measurement
* Continuous temperature control of production process
* Household appliances (Microwave oven, hair dryers, air conditioners etc), intelligent temperatureinductionand control system
* Human presence detection
Specification:
|
Noise equivalent power
|
0.27 nW/Hz¹ᐟ² |
| Response rate | 124 V/W |
| Time constant | 10 ms |
| Detection rate | 1.0 × 10⁸ cmHz¹ᐟ²/W |
| NTC resistance | 100 ± 2% KΩ |
| NTC(β) | 3950 ± 1% |
| Working temperature | -30 ~ 100℃ |
| Storage temperature | -40 ~ 110℃ |
