Thông tin chi tiết sản phẩm:
|
| Điện áp hoạt động: | 2.2 ~ 5,5V | Dòng điện làm việc: | 980μa (điển hình) |
|---|---|---|---|
| Phạm vi nhiệt độ: | -30 ~ 80 | Phạm vi độ ẩm: | 0~100%RH |
| Làm nổi bật: | digital temperature humidity probe,I2C signal humidity sensor,integrated chip temperature sensor |
||

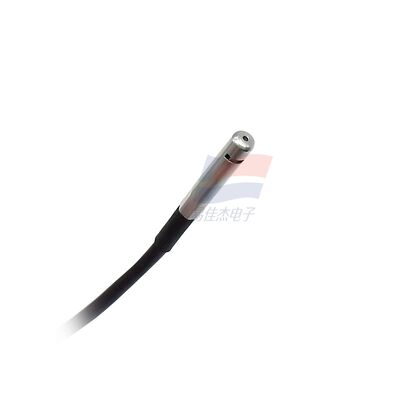

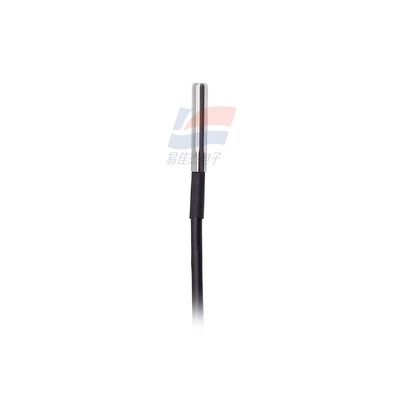

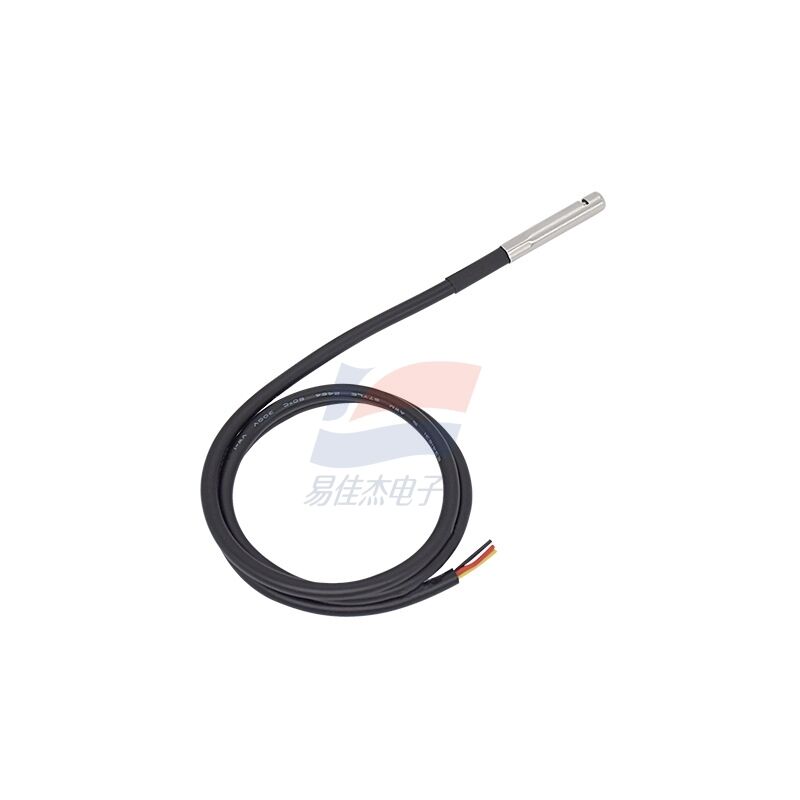

AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output
Product Summary
AHT2415C temperature and humidity probe adopts an integrated digital temperature and humidity chip, which outputs standard I²C signals and calibrated before delivery. The sensor Filter Membrane can effectively prevent the interference by water vapor and dust; Sensor
wire length 550mm (±5), and offers customization options
Features
* 304 stainless steel shell
* Excellent impact resistance, heat resistance, low
temperature resistance, chemical resistance and
electrical properties
* Fully calibrated
* Digital output, I²C interface
* Excellent long-term stability
* Quick response, fast recovery time, strong anti-interference ability
Product Parameters
| Operating Voltage | 2.2~5.5V |
| Working Current | 980μA (Typical) |
| Temperature Range | -30~80℃ |
| Humidity Range | 0~100%RHAccuracy ±0.5℃;±3%RH |
| Typical Power | 3.2mWInterface I²C |
