Thông tin chi tiết sản phẩm:
|
| Nhiệt độ hoạt động: | 5oC ～ 40oC | Nhiệt độ bảo quản: | -15oC ～ 50oC |
|---|---|---|---|
| Độ ẩm môi trường: | 5% ~ 95% RH | Không có điểm bù: | ≤ 0,5 mV |
| Tuyến tính: | ± 1% fs | Thời gian trả lời (T90): | ≤ 15 s |
| Bù nhiệt độ: | 15~40°C | Tuổi thọ sử dụng: | >500.000 % O₂・giờ |
| Làm nổi bật: | medical grade oxygen sensor,electrochemical O2 sensor,medical equipment oxygen sensor |
||
Product Description:

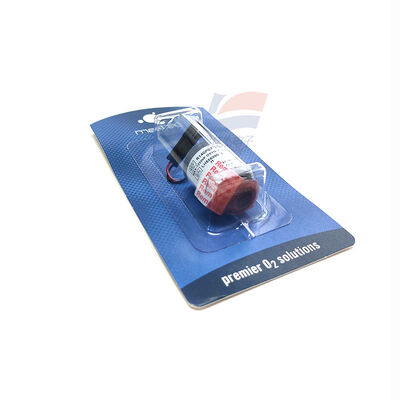

YJJ MAX-125WF R140P07-002 0-100%Vol Medical Grade Electrochemical Oxygen O2 Sensor for Medical Equipment
Features:
Core Parameters
Brand Model: Maxtec Max-125WF
Detection Principle: Electrochemical (Battery Type)
Detected Gas: Oxygen O2
Range: 0 - 100% Vol (Full Range)
Output Signal: 10.5 - 15 mV (Analog Voltage, Linear)
Zero Point Offset: ≤ 0.5 mV
Linearity: ± 1%
Response Time: T90 ≤ 15 Seconds
Temperature Compensation: Error < ±3.0% within 15 - 40°C
Operating Temperature: 5°C - 40°C
Storage Temperature: -15°C - 50°C
Humidity: 5% - 95% RH (Non-condensing)
Life Span: > 500,000% O2 Hours (High Lifespan)
Electrical Interface: Molex 70107-0001 Connector
Packaging: Threaded (Medical Standard)
II. Working Principle
Pumpless, Self-Powered: Electrochemical battery structure, oxygen diffuses into the sensor for oxidation-reduction reaction, directly generating a micro-voltage signal proportional to the concentration.
No Heating / External Power Supply Required: Low power consumption, maintenance-free.
Linear Output: 0–100% O2 Corresponds to 10.5–15 mV, directly connected to medical equipment ADC.
III. Main Applications (Medical Specialized)
Anesthesia Machine: Intraoperative oxygen concentration monitoring, safety alarm
Ventilator: ICU / Emergency / Home Ventilator Oxygen Concentration Control
Oxygen Therapy Equipment: Oxygen Generator, Hyperbaric Oxygen Chamber, Oxygen Concentration Analyzer
Life Monitoring Device: Mixed Gas Oxygen Content Monitoring in Operating Room / Hospital Room
Medical Research: Gas Analysis, Respiratory Mechanics Experiment
IV. Core Advantages
Medical Grade Precision: ±1% Linear, Meeting Clinical Certification Requirements
Extremely Long Lifespan: 500,000 Hours O2 Lifespan, Reducing Replacement
Stable and Reliable: Anti-interference, Small Temperature Drift, Low Long-Term Drift
Plug-and-Play: Standard Interface, No Calibration, Quick Replacement
Medical Compliance: Compliant with FDA, IEC Medical Standards
Specifications:
| Measurement range | 0 - 100% VOL |
| Output signal | Analog voltage 10.5 - 15 mV |
| Zero point offset | ≤ 0.5 mV |
| Overall power consumption | < 1.5 mW |
| Response time (T90) | ≤ 15 s |
