Thông tin chi tiết sản phẩm:
|
| Tên thay thế: | Cốc tích lũy nước CO₂ | Kết cấu: | Thiết kế tái sử dụng |
|---|---|---|---|
| Vật liệu: | Vỏ nhựa y tế | Bao bì: | 12 miếng mỗi hộp |
| Màu sắc xuất hiện: | Trắng + Xanh | Tuổi thọ sử dụng: | Có thể tái sử dụng trong 4 tuần |
| Hạn sử dụng: | 1 năm | Chức năng khoang: | Thu gom nước ngưng tụ |
| Làm nổi bật: | medical anesthesia machine water cup,reusable anesthesia machine collection cup,YJJ 6872130 medical water cup |
||
Product Description:

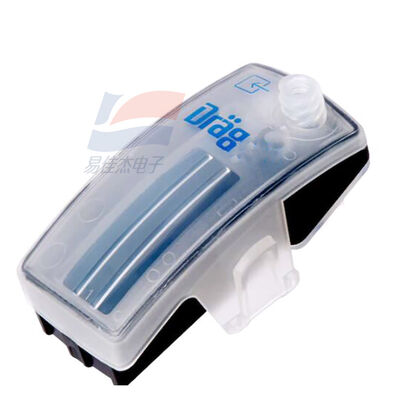

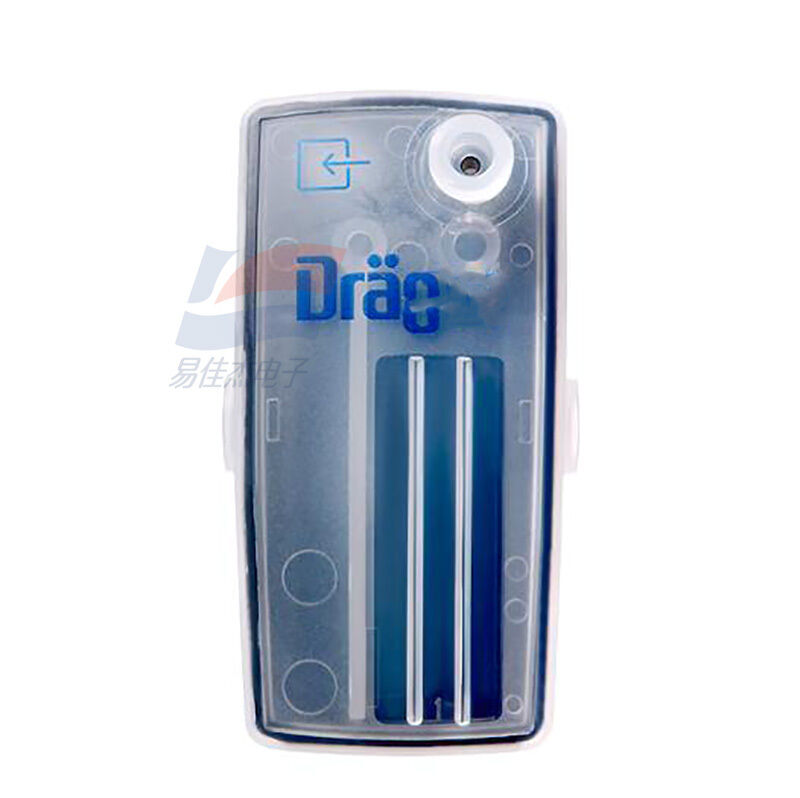

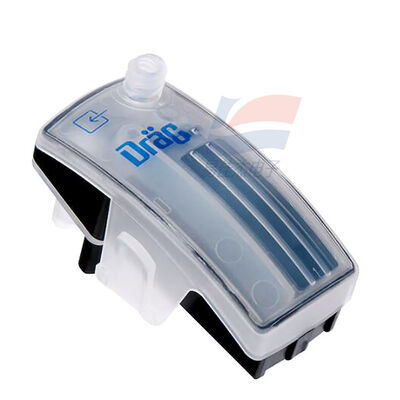

YJJ 6872130 Reusable Water Collection Cup Specifically Designed for Medical Anesthesia Machines
Features:
6872130 is the WaterLock 2 reusable water cup launched by German company Dräger. It is specifically designed for the breathing circuit of ventilators / anesthesia machines. Its main function is to prevent condensate and secretions from entering the gas measurement system, protecting multi-gas sensors (such as infrared CO2 sensors) and ensuring patient safety. (dräeger.com)
Key parameters Table
Parameter item Specification
Model: WaterLock® 2 (Order Number: 6872130) draeger.com
Core structure: Double hydrophobic PTFE membrane (pore size 0.2 μm) + double self-sealing filter element draeger.com
Protective capability: Blocks condensate water, bacteria, and viruses; the filter element turns blue when clogged draeger.com
Compatible equipment: Delgag Evita, Fabius, Savina, Primus, Vamos, etc. ventilators / anesthesia machines draeger.com
Packaging specification: 12 pieces / box draeger.com
Service life: Recommended continuous use for 4 weeks, can be emptied and reused as needed draeger.com
Size: Approximately 66.2 × 44.5 × 30.5 mm
Material: Medical-grade plastic, compatible with high-temperature and high-pressure sterilization (134℃) draeger.com
Management category: Class I medical device (CE certification) draeger.com
Main application
Condensate water collection: Efficiently collects moisture in the exhalation circuit to prevent liquid from entering the sensor or patient's airway draeger.com.
Sensor protection: Double membrane structure completely blocks water vapor and bacteria, avoiding damage to infrared CO2/multi-gas sensors draeger.com.
Patient safety: Blocks the transmission of secretions and contaminants, reducing the risk of cross-infection draeger.com.
Clinical scenarios: ICU ventilators, operating room anesthesia machines, neonatal / pediatric ventilator circuits draeger.com.
Key features and usage
Double membrane protection: Double-layer PTFE membrane (0.2 μm) blocks water and bacteria, self-sealing filter element indicates clogging with color change draeger.com.
Convenient maintenance: Detachable, can be emptied with an injection needle; supports high-temperature sterilization for reuse draeger.com.
Stable monitoring: Optimized flow path design ensures waveform and data accuracy in extreme conditions such as low-flow anesthesia draeger.com.
Cost advantage: Single reusable for 4 weeks, 12 pieces can meet the annual consumable demand of the anesthesia workstation draeger.com.
Installation and maintenance
Installation position: Connected in series to the exhalation end of the breathing circuit, front of the flow sensor / CO2 sampling port draeger.com.
Disinfection method: 134℃ high-pressure steam sterilization or ethylene oxide sterilization draeger.com.
Replacement cycle: Regularly replaced every 4 weeks; replace immediately when contaminated, clogged, or filter element changes color draeger.com.
Compatible connectors: Compatible with standard 22 mm/15 mm breathing tubes
Specifications:
| Packaging specification | 12 pieces |
| Dimensions | Approximately 66.2 × 44.5 × 30.5 mm |
| Sensitivity | 130 ± 30 nA/ PPM |
| Zero current (at 20°C) | lt130 |
| Resolution (at 20°C) | lt;1 ppm |
