Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | 0,0–100,0 thể tích% O₂ | Sự chính xác: | ±0,5% (0–25%); ±3,0% (>25%) |
|---|---|---|---|
| Nghị quyết: | 0,1 thể tích% O₂ | Thời gian đáp ứng: | T90 ≤ 20 giây |
| Làm nổi bật: | SOX-M1 oxygen sensor replacement,rapid response oxygen gas monitor,Oxygen gas sensor with warranty |
||

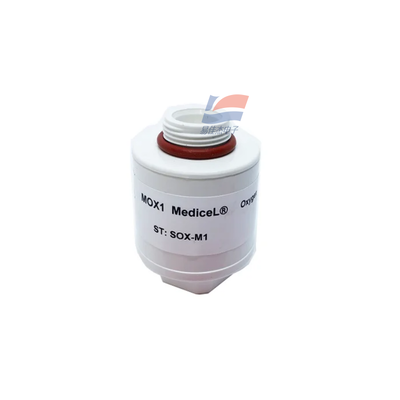

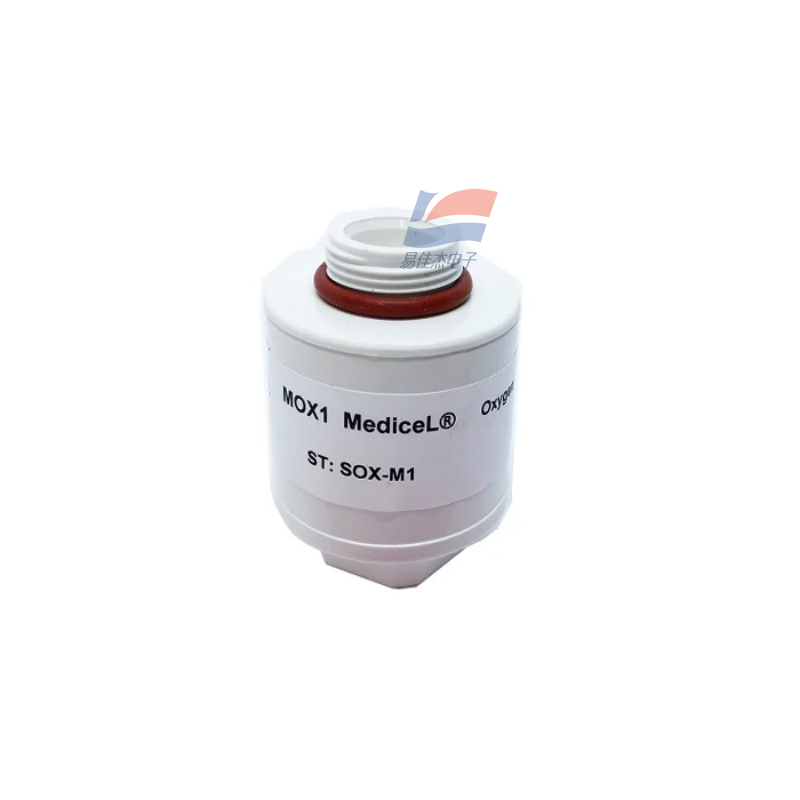

SOX‑M1 Oxygen Gas Sensor Monitor Replacement Sensor Rapid Response
The SOX-M1 is a galvanic cell-type oxygen sensor manufactured by JIKCO (formerly ICHINEN JIKCO) of Japan. Designed specifically for the JKO-25 series of oxygen monitors, it features a long service life, rapid response, stable performance across a wide temperature range, and plug-and-play functionality.
Key Features
1. Plug-and-Play with One-Touch Calibration: After replacement, simply perform a one-touch calibration using 20.9% standard air; this eliminates the need to return the unit to the factory, thereby minimizing downtime.
2. Long Lifespan and Low Drift: Featuring high-purity electrodes and a stable electrolyte, the sensor offers a lifespan superior to that of conventional electrochemical sensors, resulting in lower long-term maintenance and operational costs.
3. Wide-Temperature Stability: With built-in temperature compensation, the sensor maintains stable output across a range of -20°C to +50°C, making it suitable for complex operating environments such as cold storage facilities and high-temperature workshops.
4. Industrial-Grade Durability: Compact in size and highly weather-resistant, it is ideally suited for safety monitoring—specifically for oxygen deficiency or enrichment—in industrial chemical facilities, laboratories, warehousing environments, and confined spaces.
Typical Applications
1. Industrial Oxygen Deficiency / Oxygen Enrichment Safety Monitoring
2. Oxygen Concentration Control in Confined Spaces (Pipelines, Chambers, Storage Tanks)
3. Laboratories, Medical Facilities, Food Packaging, and Inert Gas Protection Environments
4. Replacement for legacy JKO-25 series sensors, enabling rapid restoration of monitoring capabilities
Specification:
| Response Time | T90 ≤ 20 seconds |
| Operating Environment | -20°C to +50°C; Humidity: 5–95% RH (non-condensing); Built-in temperature compensation |
| Lifespan | ≥ 2 years in ambient air (decay < 5% per 1000 hours of continuous operation) |
| Dimensions / Weight | φ29.3 × 32.5 mm; approx. 40 g |
| Compatible Models | JKO‑25S3/ML3/MT3/W3/SD3/WD3, etc. |
