Thông tin chi tiết sản phẩm:
|
| Loại sản phẩm: | Mảng cảm biến khí MEMS | GÓI TIÊU CHUẨN: | Gói kim loại |
|---|---|---|---|
| Điện áp cung cấp: | DC 5V | Hoạt động hiện tại: | 150 mA |
| Làm nổi bật: | multi-channel gas sensor,intelligent AI gas detector,6-gas channel electronic nose |
||

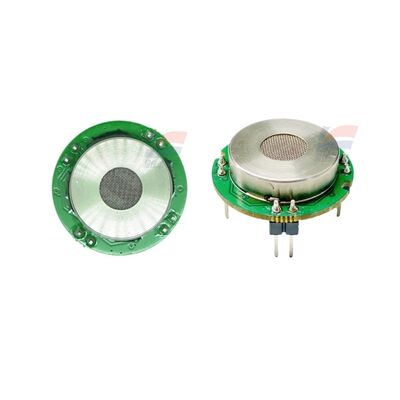

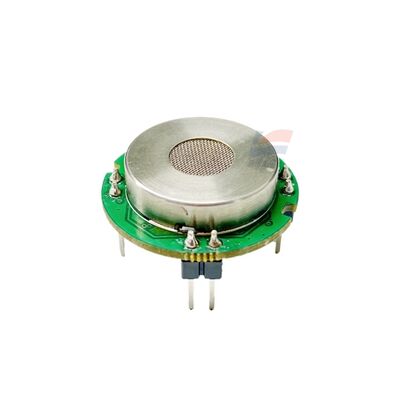

ZM101-A Gas Sensor Multi Channel Intelligent Electronics AI Nose 6 Gas Channels
Product Description
AI-Nose is a multi-channel intelligent electronic nose system comprising six MEMS sensing units, offering the flexibility to select operational modes ranging from one to six channels. The product features capabilities such as signal filtering and temperature/humidity compensation, and supports deep integration with artificial intelligence algorithms. This enables a complete closed-loop workflow—spanning target gas capture, feature analysis, model construction, and task recognition.
Product Features
*6 gas channels available for simultaneous, independent selection
*Rapid response and recovery speeds
*Supports integration of AI algorithm models
*Low power consumption
*Long lifespan
Key Applications
*Smart Appliances (refrigerators, air conditioners, microwave ovens, air purifiers, range hoods, etc.)
*Smart Vehicles (in-cabin/exterior air quality detection, personalized smart interaction experiences, etc.)
*Industrial Safety (detection of toxic and hazardous gases, leak alarms, etc.)
*Healthcare (assisted early-stage disease screening, patient status monitoring, medical environment air quality monitoring, etc.)
Specification:
| Detected Gas and Measurement Range | NH:1~300 ppm NO:z0.1~10 ppm CO:1~5000 ppm VOC:1~500 ppm HS:0.5 ~50 ppm CH::50~10000 ppm |
| Operating Power Consumption | ≤ 750 mW |
| Communication Interface | UART |
| Warm-up Time | ≤ 120 s |
| Operating Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Storage Temperature | -40°C to 85°C |
| Connection Type | Pin Header (2.54 mm / 2-pin) |
