Thông tin chi tiết sản phẩm:
|
| Khí được phát hiện: | Oxy (O₂) | Nguyên tắc phát hiện: | Điện thế tiềm năng không đổi |
|---|---|---|---|
| Phạm vi đo: | 0 – 25 tập.% | Quá tải: | Tối đa. 30 tập% |
| Làm nổi bật: | oxygen gas sensor potentiostatic electrolysis,three electrode oxygen sensor,TGS4260 gas sensor with warranty |
||

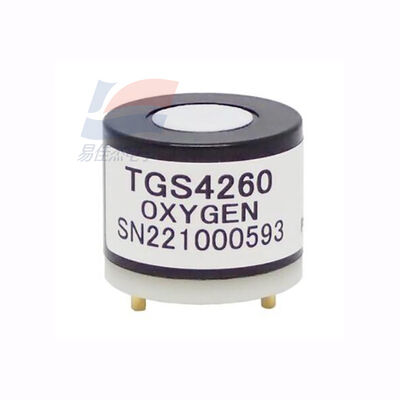

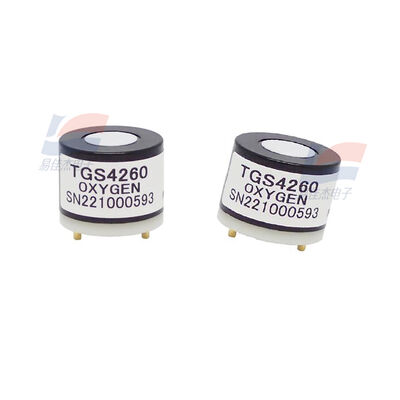

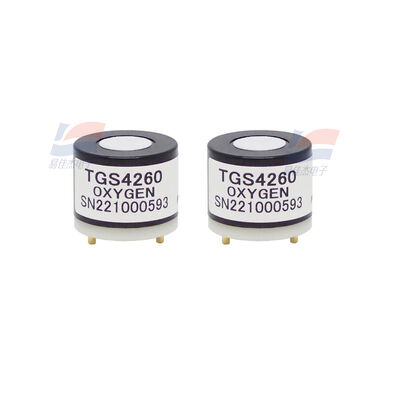

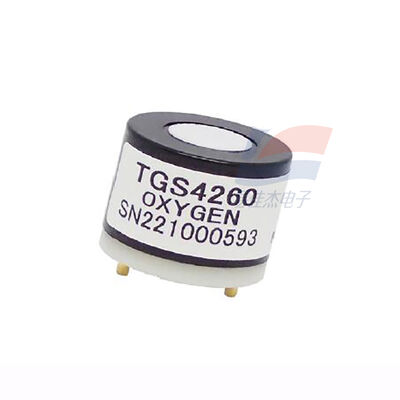

TGS4260 Oxygen Gas Sensor Potentiostatic Electrolysis Type Three Electrode
Constant-Potential Electrolytic, Lead-Free Oxygen (O₂) Sensor — Industry-Standard 20mm Package, Long Lifespan, Linear Output
Features and Applications
1. Lead-free design, RoHS compliant
2. 20mm industry-standard size
3. Linear output, rapid response, high selectivity
4. Shock-resistant, long lifespan
Applications: Portable/fixed oxygen detectors, multi-gas alarms, industrial oxygen concentration monitoring
Specification:
| Sensitivity | Approx. 0.4 mA/vol.% (@ 20.9% O₂, 20 Ω load) |
| Response Time (T90) | < 8 seconds |
| Resolution | 0.1 vol.% |
| Repeatability | ±2% |
| Bias Voltage | -600 mV ±10 mV |
|
Recommended Load Resistance |
20 Ω |
Operating Temperature:
| Operating Humidity | 15% – 85% RH (non-condensing) |
| Operating Pressure | 100 kPa ±20 kPa |
| Dimensions | Φ20.4 mm × 20.6 mm (including pins) |
| Weight | Approx. 6.0 g |
| Lifespan | > 5 years (in air) |
| Storage Temperature | 5°C – 35°C |
| Warm-up Time | ≥ 3 hours |
