Thông tin chi tiết sản phẩm:
|
| Năng lượng photon: | 10,6eV | Điện áp làm việc: | 3,2 ~ 5,5V DC |
|---|---|---|---|
| Điện áp bằng không: | > 20mV | Thời gian trả lời (T90): | ≤5s |
| Nhiệt độ làm việc: | -20 ~ 50℃ | Nhiệt độ bảo quản: | 0 ~ 25oC |
| Làm nổi bật: | 4R-PID photoionization detector sensor,10.6eV PID gas sensor,industrial hygiene gas detector |
||

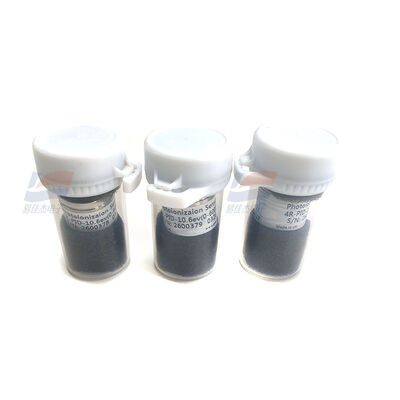

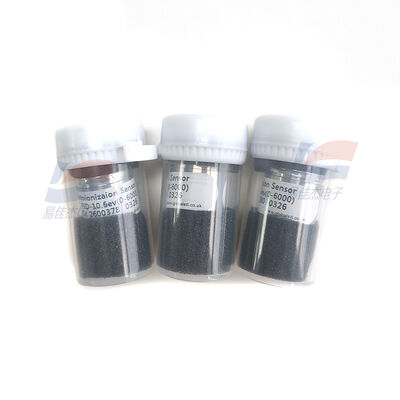

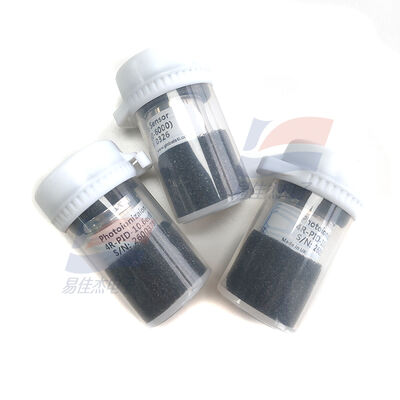

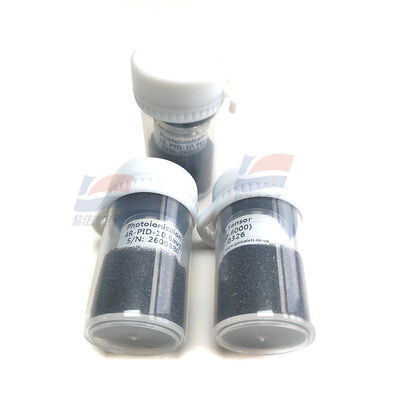

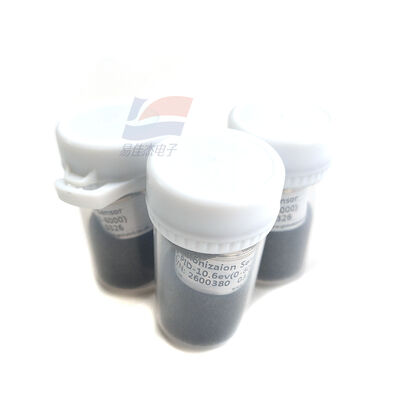

4R-PID-10.6eV Photoionization Detector (PID) Sensor for Industrial Hygiene & Workplace Safety Laboratory & Analytical Equipment
4R-PID-10.6eV is a high-performance photoionization detector (PID) sensor designed for detecting volatile organic compounds (VOCs) and certain inorganic vapors
Typical Applications:
Environmental VOC monitoring
Industrial hygiene & workplace safety
Oil & petrochemical leak detection
Emergency response & hazmat
Soil & groundwater remediation
Portable/fixed gas detectors
| 10.6 | eV | |
| Target Gas | VOCs and inorganic vapors with ionization energy ≤10.6eV | - |
| Detection Range | 0~10; 0~40; 0~100; 0~6000; 0~10000 (optional) | ppm |
| Resolution | 1; 10; 25; 500; 2 (matching the detection range) | ppb/ppm |
| Sensitivity | >40; >10; >5; >0.1; >0.1 (matching the detection range) | mV/ppm |
| Working Voltage | 3.2 ~ 5.5 | V DC |
| Zero Voltage | >20 | mV |
| Output Voltage | 0.02 ~ 2.0 (max 3.3) | V |
| Response Time (T90) | ≤5 | s |
| Accuracy | ≤±2% (non-condensing) | - |
| Working Humidity | 0 ~ 99% (non-condensing) | RH |
| Working Pressure | 800 ~ 1200 | mbar |
| Working Temperature | -20 ~ 50 | ℃ |
| Storage Temperature | 0 ~ 25 | ℃ |
