Thông tin chi tiết sản phẩm:
|
| Loại cảm biến: | Cảm biến bề mặt phẳng bán dẫn | Đóng gói tiêu chuẩn: | Mũ kim loại |
|---|---|---|---|
| Khí phát hiện: | gas lạnh | Phạm vi phát hiện: | 100～10000ppmĐiện áp vòng lặp 5.0V±0.1V DC Điện áp gia nhiệt 5.0V±0.1V DC Khả năng chịu tải Có thể đi |

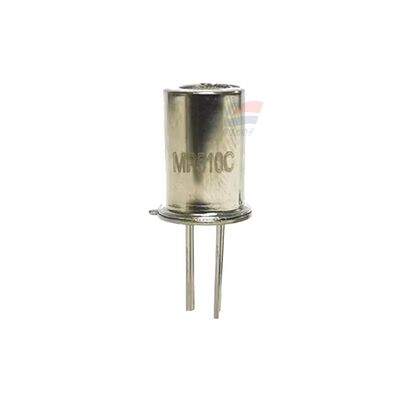

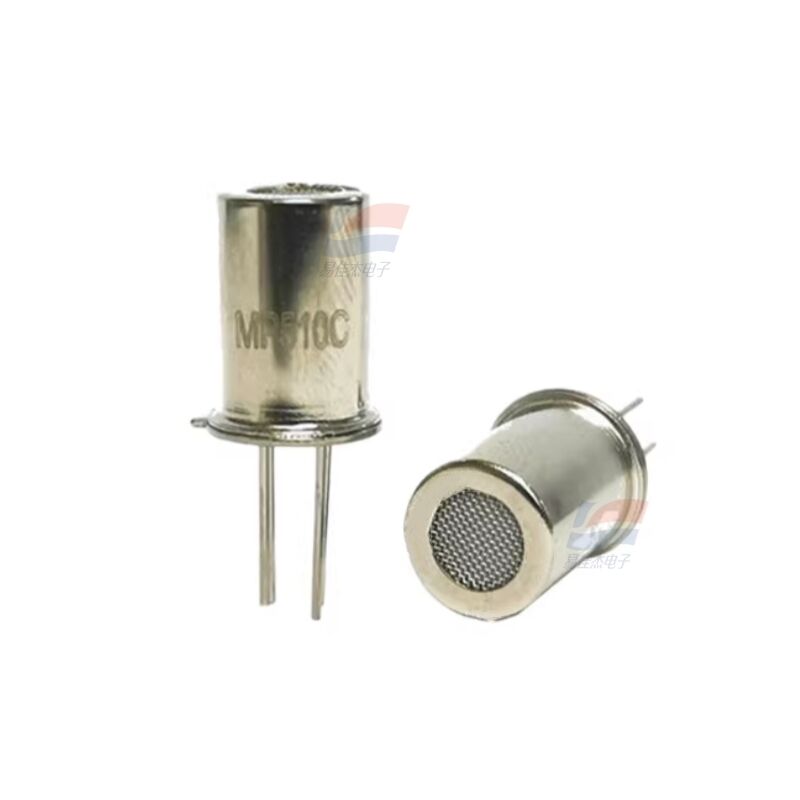

MP510C Refrigerant Gas Sensor High Selectivity Semiconductor Flat Surfaced
The MP510C Freon gas sensor uses a multilayer thick film manufacturing process to fabricate heating and measuring electrodes and a metal oxide semiconductor gas-sensitive layer on a miniature Al2O3 ceramic substrate, and encapsulate it in a metal casing. When the detected gas exists in the ambient air, the conductivity of the sensor changes. The higher the concentration of the gas, the higher the conductivity of the sensor. This change in conductivity is converted into an output signal corresponding to the gas concentration through the circuit. The product has good anti-interference ability against common gases such as alcohol and acetic acid in usage scenarios.
Specification:
| Loop voltage | 5.0V±0.1V DC |
| Heating voltage | 5.0V±0.1V DC |
| Load resistance | Adjustable |
| Heating consumption | ≤300mW |
