Thông tin chi tiết sản phẩm:
|
| Bao bì: | khay | để đo lường: | AC/DC |
|---|---|---|---|
| Cảm nhận hiện tại: | 30A | đầu ra: | đo lường, điện áp |
| Làm nổi bật: | board mount current sensor 30A,AC DC current sensor 30A,current sensor with warranty |
||

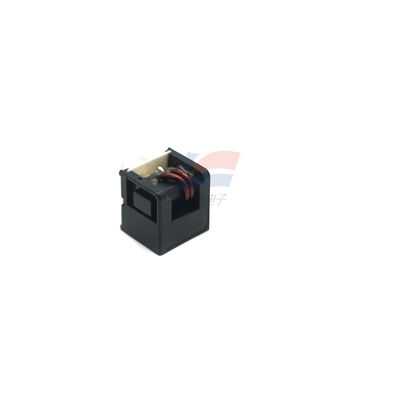

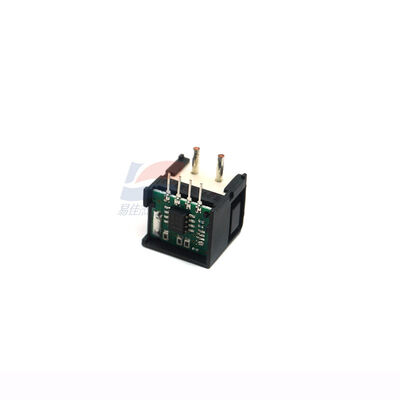

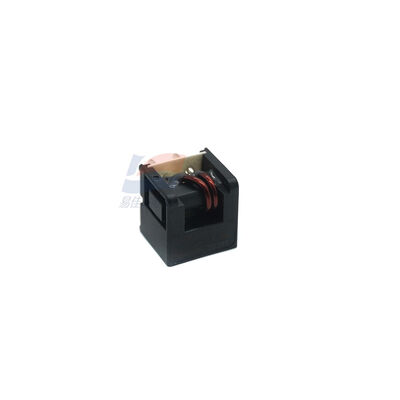

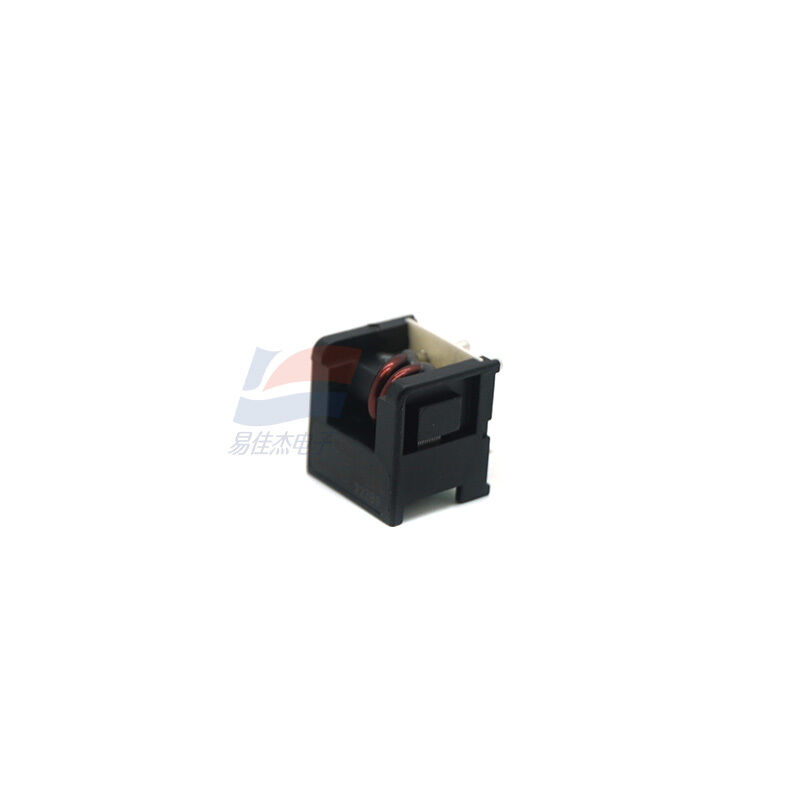

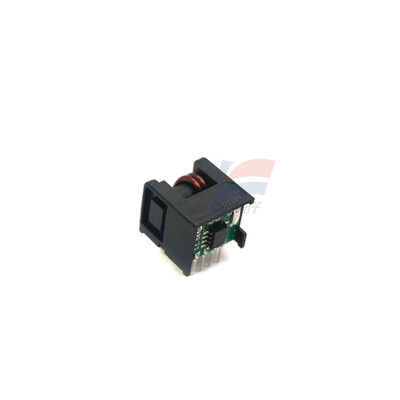

L18P030D15-OP Board Mount Current Sensors For AC DC 30A Current
The L18P030D15 - OP is an open-loop Hall effect current sensor manufactured by Tamura of Japan. It is compatible with AC and DC current detection and is commonly used in electronic devices requiring high-precision current monitoring.
Specification:
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 5µs |
| Current - Supply (Max) | 18mA |
| Operating Temperature | -30°C ~ 80°C |
| Polarization | Bidirectional |
| Installation Method | Through-hole mounting |
| Dimensions | Length 17.5mm, Width 17mm, Height 15.2mm (mm) |
| Weight | 8g |
| Operating Temperature Range | -30℃ to +80℃ |
| Storage Temperature Range | -40℃ to +85℃ |
