Thông tin chi tiết sản phẩm:
|
| Nhiệt độ hoạt động Topr: | -10 đến +60 | Nhiệt độ lưu trữ TSTG: | -20 đến +70 |
|---|---|---|---|
| Kích thước gói: | 9.0*9.6*2.1mm | Bề mặt nhận ánh sáng: | 3,2 * 3,2mm |
| Dòng điện tối (giá trị tối đa): | 0,2 nA | tăng thời gian: | 0,5 μs |
| Làm nổi bật: | RGB color sensor photodiode array,RGB light intensity detector,silicon photodiode RGB sensor |
||
Product Description:

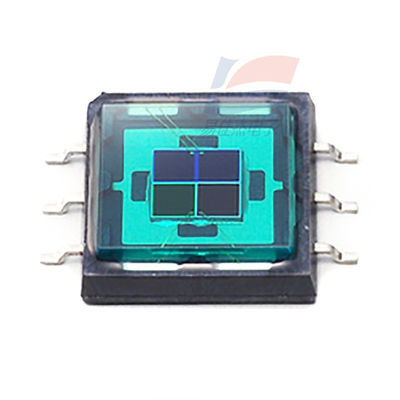

YJJ S7505-01 RGB Color Sensor Silicon Photodiode Array Is Used To Detect Intensity Of RGB Light
Features:
RGB color sensor
The S7505-01 uses a 3-channel (RGB) photodiode with sensitivity to blue light, green light and red light, and is molded into a surface mount type package.
Characteristics
-3 channels (RGB) silicon photodiode
-Surface mount type plastic package (9 × 9.6 mm)
-High sensitivity
Detailed parameters
Product type RGB photodiode
Package material Plastic
Package type Surface mount type
Package size 9.0 × 9.6 × 2.1 mm
Light-receiving surface 3.2 × 3.2 mm
Sensitivity wavelength range (blue) 400 to 540 nm
Sensitivity wavelength range (green) 480 to 600 nm
Sensitivity wavelength range (red) 590 to 720 nm
Maximum sensitivity wavelength (blue) 460 nm
Maximum sensitivity wavelength (green) 540 nm
Maximum sensitivity wavelength (red) 620 nm
Photo-sensitivity (blue) 0.18 A/W
Photo-sensitivity (green) 0.23 A/W
Photo-sensitivity (red) 0.16 A/W
Dark current (maximum value) 0.2 nA
Rise time 0.5 μs
Operating temperature -10 to +60 degrees Celsius
Storage temperature -20 to +70 degrees Celsius
Measurement conditions Typical values: Ta = 25°C, per pixel, photo-sensitivity: λ = λp, dark current (all pixels): VR = 1 V, unless otherwise specified
Specifications:
| Product type | RGB photodiode |
| Package | material Plastic |
| Package type | Surface mount type |
| Package size | 9.0 × 9.6 × 2.1 mm |
| Light-receiving surface | 3.2 × 3.2 mm |
