Thông tin chi tiết sản phẩm:
|
| Phạm vi đo lường: | 100ppm | Độ nhạy: | 30ppm |
|---|---|---|---|
| Dòng điện điểm 0: | <±2ppm | Nghị quyết: | <0,05ppm |
| Làm nổi bật: | hydrogen cyanide gas sensor,chemical leak detection sensor,HCN-A1 gas sensor |
||

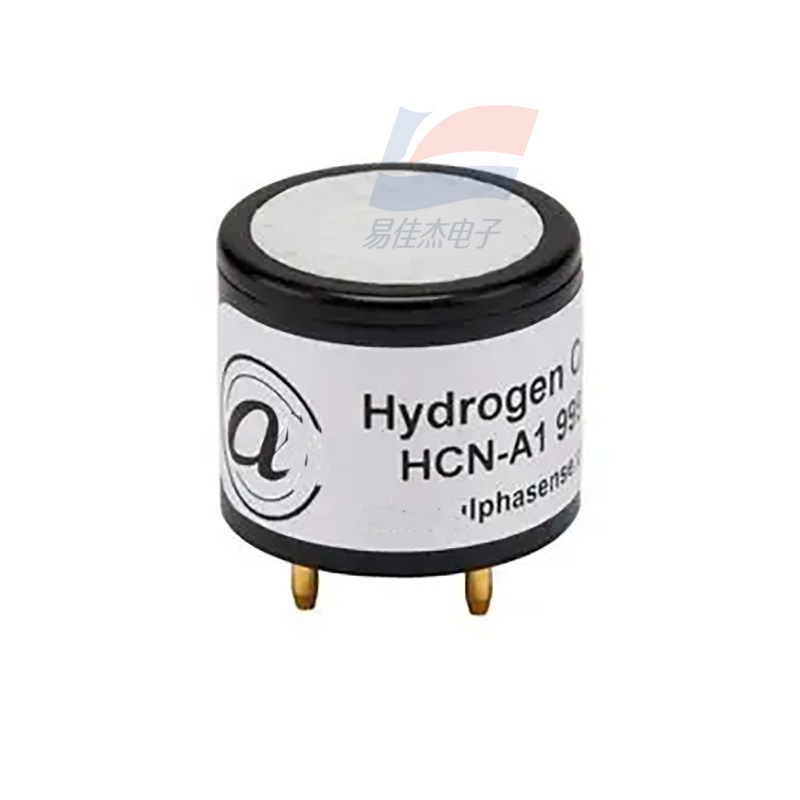

HCN-A1 Hydrogen Cyanide Gas Sensor Used For Chemical Leak Detection
The HCN-A1 electrochemical hydrogen cyanide gas sensor is commonly used in chemical leak detection, environmental monitoring, and other applications.
Physical and usage cycle parameters
| Dimensions | Diameter 20.2mm, Overall height 16.5mm (including label), Dimensional tolerance ±0.15mm |
| Weight | <6 grams |
| Operating life | Output signal drops to 80% of initial value in over 12 months, official 12-month warranty |
| Storage period | 6 months in a sealed environment at 3-20℃ |
Environment adaptation parameters
| Operating temperature | -30~50°C; sensitivity at -20°C is 75-95% of that at 20°C, and sensitivity at 50°C is 105-120% of that at 20°C. |
| Operating humidity | 15-90% RH (continuous operation) |
| Operating pressure | 80-120 kPa |
| Temperature effect on zero point | zero-point change relative to 20°C at -20°C < 0-1 ppm; zero-point change relative to 20°C at 50°C < ±1 ppm. |
Electrical and interference related parameters
| Recommended load resistor | 10 - 33Ω |
| Bias requirement | No additional bias voltage required |
