Thông tin chi tiết sản phẩm:
|
| Phạm vi đo lường: | 0 - 25% oxy | Tín hiệu đầu ra: | 0,41 ± 0,05 mA |
|---|---|---|---|
| T90 Thời gian phản ứng: | Dưới 10 giây | Giao diện: | Giao diện 2 chân |
| Điện áp Bias: | 0V | Vận hành phạm vi độ ẩm: | 0% - 99% |
| Phạm vi áp suất: | 800 đến 1200 mbar | Quá tải lớn: | 30% oxy |
| Làm nổi bật: | electrochemical oxygen sensor for industrial monitoring,oxygen concentration sensor for medical use,YJJ S+5OX oxygen gas sensor |
||
Product Description:

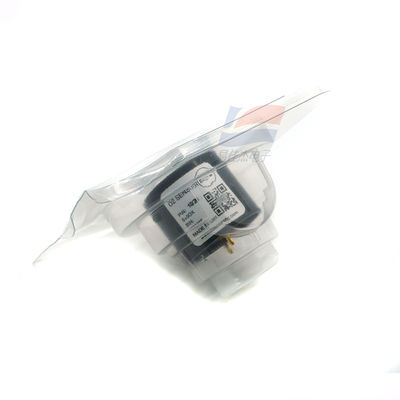

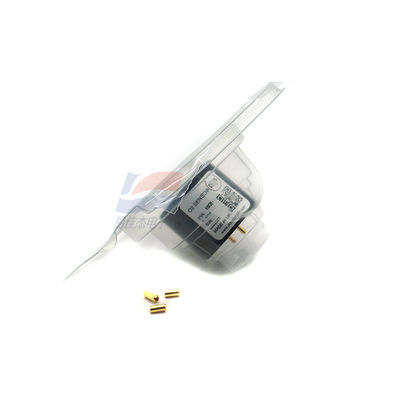

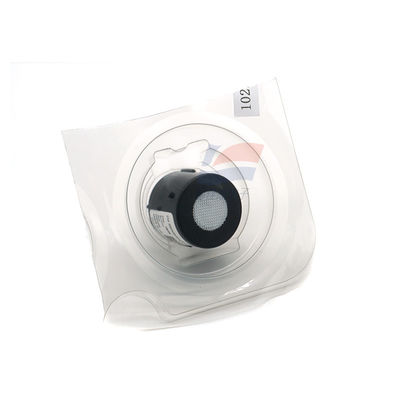

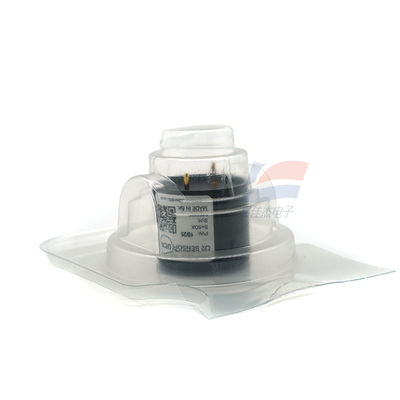

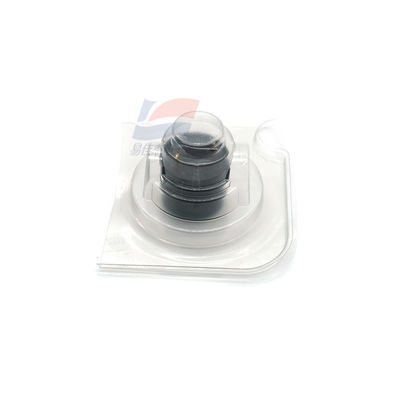

YJJ S+5OX Electrochemical Oxygen Sensor Is Used For Oxygen Concentration Monitoring Industrial Medical fields
Features:
S+5OX gas sensor is an oxygen sensor, mainly used for monitoring oxygen concentration. It is applicable in industries, healthcare, environmental monitoring, and other fields. Here is the description of its key parameters and uses:
Core parameters
Output signal: 0.22 ± 0.04 mA (when oxygen in the air is 20.9%)
Zero current: < 0.3% vol. O2
T90 response time: < 10 seconds
Measurement range: 0 - 25% oxygen concentration (maximum overload 30%)
Operating environment:
Temperature: -40°C to +60°C
Pressure: 800 - 1200 mbar
Humidity: 15% - 90% RH
Life and stability:
Long-term output drift < 5% per year
Expected service life > 60 months (in air)
Storage conditions: Recommended storage temperature 0°C to 20°C Purpose
Industrial Safety Monitoring: Used for detecting oxygen concentration in enclosed spaces (such as mines, chemical plants), to prevent risks of hypoxia or oxygen enrichment.
Medical Equipment: Real-time monitoring of oxygen concentration in devices like ventilators and oxygen generators to ensure safe oxygen supply.
Environmental Monitoring: Monitoring air quality in laboratories or clean rooms to maintain oxygen concentration within safe limits.
Energy Industry: Monitoring oxygen content in power plants and hydrogen applications to ensure the safety of equipment operation.
Specifications:
| Overload resistance | 30% |
| Response time | 10 seconds |
| Drift in quantity | <5% |
| Life expectancy | 24 months |
