Thông tin chi tiết sản phẩm:
|
| Loại cuộn: | DC đơn ổn định | Điện áp định mức cuộn dây: | 24VDC |
|---|---|---|---|
| điện trở cuộn dây: | 1200Ω | Công suất định mức cuộn dây: | 480mW |
| Mẫu liên hệ: | Loại 1C (CO) | Vật liệu liên hệ: | Hợp kim bạc niken (AgNi0,15) |
| Liên hệ đánh giá hiện tại: | Tối đa 5A | Liên hệ với điện áp định mức: | AC 250VAC |
| Làm nổi bật: | YJJ V23057 power relay,PCB installation power relay,motor control power relay |
||
Product Description:

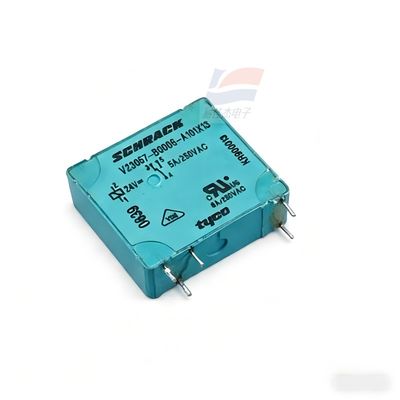

YJJ V23057-B0006-A101 Power Relay Is Used for PCB Installation Such As in Field of Motor Control
Features:
V23057-B0006-A101 is a SPDT single-pole relay with a 24V DC coil and a 5A switching current. It is suitable for PCB installation scenarios and the contact material is silver alloy. It belongs to the Card E series products.
Core parameters
Coil voltage: 24V DC
Switching current: 5A
Contact configuration: SPDT (Single-Pole Double-Throw)
Number of poles: 1 pole
Installation type: PCB installation
Contact material: Silver alloy Purpose
This relay is suitable for industrial automation scenarios that require control of large current loads, such as motor control, power switching or signal isolation, etc. Its high switching current capacity (5A) and silver alloy contact design ensure long-term stable operation.
Distribution agent TYCO relay, type of signal relay, power relay, automotive relay, optical coupling relay (MOS FET), high voltage relay, high frequency relay.
Coil parameters:
Coil type: DC single stable.
Coil rated voltage: 24VDC.
Coil resistance: 1200Ω.
Coil rated power: 480mW.
Contact parameters:
Contact form: 1C type (CO), that is, single pole double throw (SPDT).
Contact material: Silver nickel alloy (AgNi0.15).
Contact rated current: Maximum 5A.
Contact rated voltage: AC 250VAC.
Maximum contact switching voltage: AC 400VAC.
Other parameters:
Installation method: Printed circuit board through-hole (PCB - THT).
Dimensions: Length 28mm, width 10.4mm, height 25.1mm.
Weight: Approximately 14g.
Operating temperature range: -40℃ to 70℃.
Dielectric withstand voltage (between coil and contact): 4000V.
Specifications:
| Maximum contact switching voltage | AC 400VAC |
| Installation method | PCB - THT |
| Dimensions | Length 28mm, width 10.4mm, height 25.1mm |
| Weight | Approximately 14g |
