Thông tin chi tiết sản phẩm:
|
| Loại đầu ra: | Bồn rửa | Nhiệt độ lưu trữ: | -40 ° C đến 150 ° C [-40 ° F đến 302 ° F] |
|---|---|---|---|
| Điểm phát hành: | 310G; Loại 225 G. (25°C) | Loại đóng gói: | SOT23 |
| Tên loạt: | SS340RT, SS440R | Loại truyền động từ tính: | Cực đơn |
| Làm nổi bật: | single-polarity Hall effect sensor,Hall effect sensor for water meters,magnetic sensor for electricity meters |
||
Product Description:

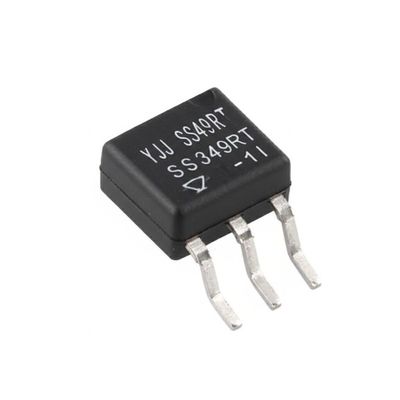

YJJ SS349RT Single-Polarity Hall Effect Magnetic Sensor Is Used In Water Meters And Electricity Meters
Features:
Single-pole position sensor integrated circuits SS340RT and SS440R are low-cost single-pole digital Hall effect sensor integrated circuits. They are packaged in SOT-23 (SS340RT) and flat TO-92 style (SS440R). The digital current sink output of SS340RT/SS440R sensor integrated circuits is a small and multi-functional digital Hall effect sensor that operates based on the magnetic field provided by permanent magnets or electromagnets. They can respond to single poles: the north pole (SS340RT) or the south pole (SS440R).
These monopolar Hall integrated circuits offer three different magnetic sensitivities for selection, which can meet various application requirements:
SS341RT and SS441R offer sensitivity, with the typical operating point at 25°C [77°F] being 75 G.
SS343RT and SS443R offer medium sensitivity, with the typical operating point at 25°C [77°F] being 135 G.
SS349RT and SS449R offer *** sensitivity, with a typical operating point of 305 G at a temperature of 25°C [77°F].
These sensors have two types of packaging:
SS340RT: Miniature SOT-23 surface-mounting package.
SS440R: Pinless TO-92 type package size.
The small size of SS340RT requires less space for the printed circuit board (PCB), making it suitable for use in smaller assemblies. Its 3 Vdc capability can be utilized in low-voltage applications, thus achieving energy-saving goals.
The SS340RT series is available in roll tape and roll disk packaging (3000 pieces per roll); the SS440R series is in bulk (1000 pieces per bag).
Potential applications
Industry
High-frequency flow sensing in HVAC (heating, ventilation, and air conditioning), water meters, fuel meters, and gas utility meters
Anti-tampering detection in water meters, electricity meters and gas meters
Level detection
Motor speed sensing
In-cylinder position sensing
Specifications:
| Series name | SS340RT, SS440R |
| Magnetic drive type | Single pole |
| Output voltage | 0.4 Vdc |
| Output current | 20 mA |
