Thông tin chi tiết sản phẩm:
|
| Phạm vi đo lường: | 0-20 ppm | Với độ phân giải: | 0,1 ppm |
|---|---|---|---|
| Phạm vi nhiệt độ: | -20°C đến 45°C | Phạm vi áp suất: | ± 10% |
| Đầu ra: | -1200 ± 200 nA/ppm | Tải tối đa: | 200ppm |
| Làm nổi bật: | NO2 gas sensor 0-20PPM,electrochemical nitrogen dioxide sensor,environmental monitoring gas sensor |
||
Product Description:

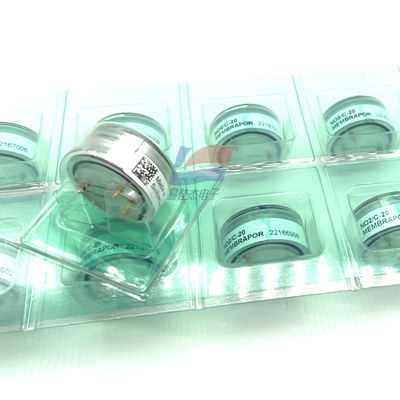

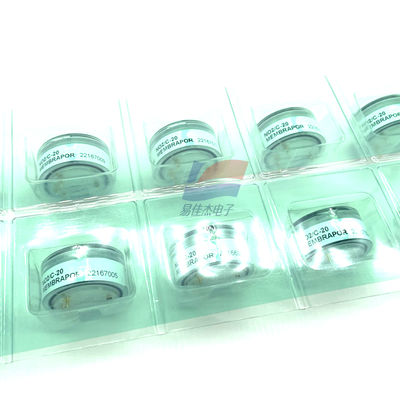

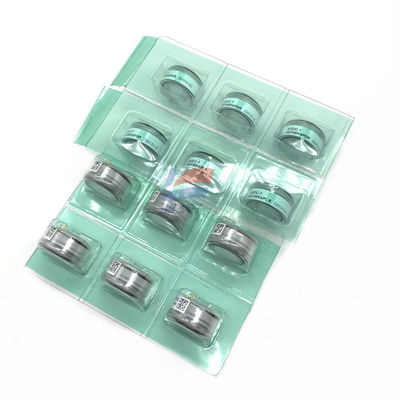

YJJ NO2/C-20 Electrochemical NO2 (Nitrogen Dioxide) Gas Sensor 0-20 PPM For Environmental Monitoring
Features:
Application of nitrogen dioxide sensor (NO2 sensor)
Nitrogen dioxide sensor (NO2 sensor) model overview:
NO2/ c-1,NO2/ c-20,NO2/ m-20,NO2/ m-200,NO2/ s-500-s,NO2/ s-1000
Nitrogen dioxide sensor (NO2 sensor) the product is less disturbed by CO, H2, H2S, SO2, CO2, SiH4, etc. Meanwhile, we have high-precision NO2 sensor NO2/ c-1 and high-range NO2 sensor NO2/ s-1000, which can meet the requirements of NO2 detection in various environments.We can also provide customers with a series of supporting products as well.
Nitrogen dioxide sensor (NO2 sensor) application field technical parameters:
NO2 / C - 20
Measurement range :0-20 PPM
Zui heavy load :200ppm
Working life: 2 years in air
Output: 1200 + 200 na/PPM
Resolution: 0.1 PPM
Temperature range: - 20 ℃ to 45 ℃
Pressure range: atmospheric pressure 10%
Response time (T 90) :< 60 seconds
Humidity range: 15-90% RH (non-condensation)
Zero output (20 ℃), pure empty body: < 0.1 PPM
Long-term drift :<2% / month
Recommend a load value: 10 to33 Ω
Offset voltage: no
More models and parameters please!
1 person holding NO2 detection instrument:
Occupational safety protection (personal safety, fire personnel safety), environmental protection industry (industrial waste gas)
2) fixed NO2 detection and alarm instrument:
Electroplating plant, nitric acid production enterprises, industrial waste gas, boiler combustion exhaust, underground garage
3) NO2 analytical instrument
Automobile exhaust analyzer
Specifications:
| Measurement range | 0-20 PPM |
| Working life | 2 years in air |
| Output | 1200 + 200 na/PPM |
| Resolution | 0.1 PPM |
