Thông tin chi tiết sản phẩm:
|
| Đầu ra: | 3.4 ± 0,4V ở 100% oxy, 1 ATM | Phạm vi: | 1 - 100% oxy |
|---|---|---|---|
| Sự chính xác: | Ít hơn ± 1,0% | Nghị quyết: | 0,1% |
| Làm nổi bật: | UFO 130-2PCB oxygen gas sensor,ultra fast oxygen gas sensor,2x2 inch PC board gas sensor |
||

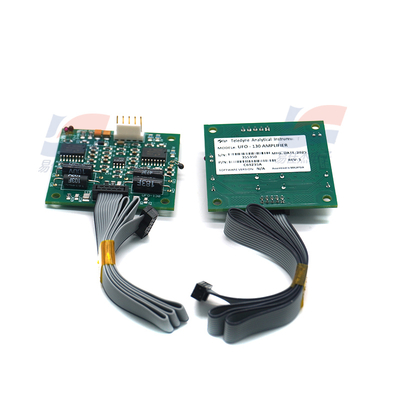

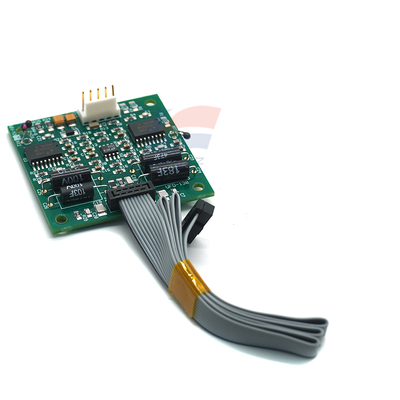

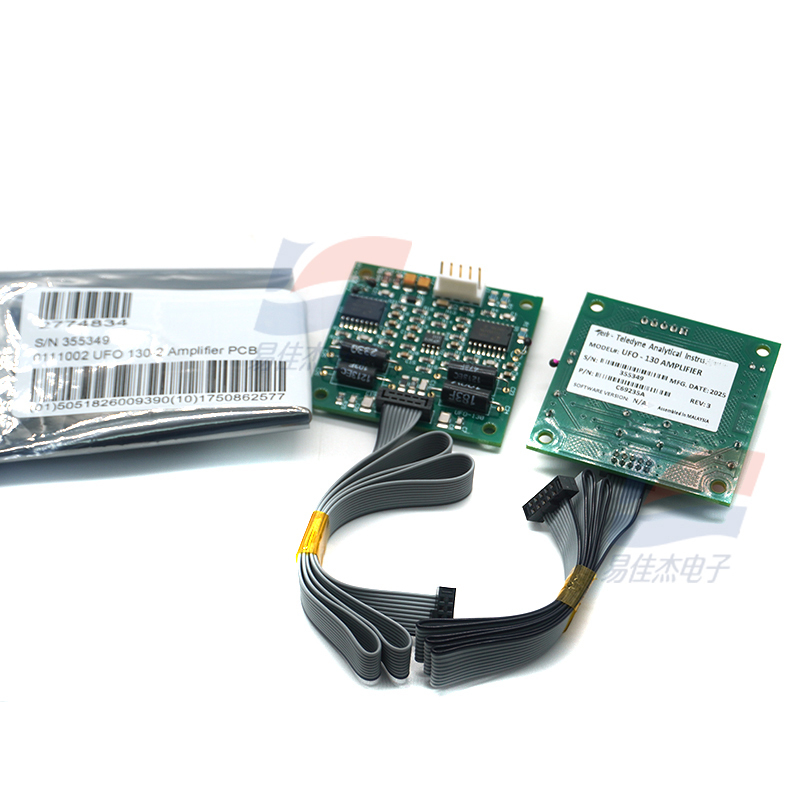

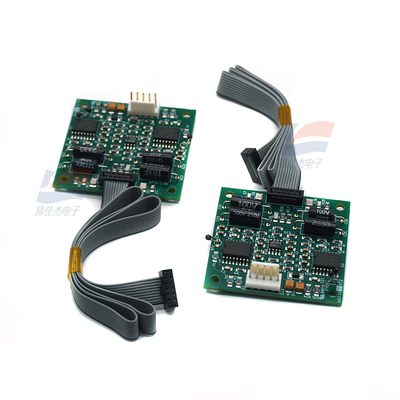

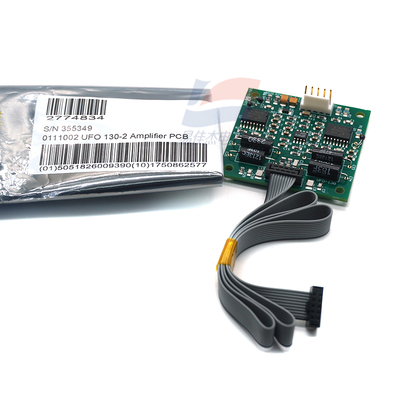

UFO 130-2PCB Oxygen Gas Sensors Ultra Fast 2x2 inch PC Board
The 2-year Ultra Fast Oxygen sensor (UFO-130-2) is a prime example of this capability. Specifically developed as a reliable and economical
alternative to expensive paramagnetic and optical sensors, the Teledyne UFO utilizes fuel cell technology which is
inherently rugged and forgiving. Unlike other sensors, the UFO is insensitive to shock, vibration, and position, and will withstand repeated
exposure to water without damage. With an average response time of 100 milliseconds, the UFO is one of the fastest sensors ever developed for
this application.
Ideally suited for use in Metabolic and Critical Care Monitors, the UFO is also a welcome addition to Clinical Exercise and Sports Medicine as well
as other applications where Breath by Breath analysis is critical.
Specification:
| Operating humidity | 0 – 99% RH (non-condensing) |
| Operating ambient pressure | 550 – 800 mm Hg |
| Operating relative pressure: Continuous | -100 to +100 mm H g to ambient pressure |
| Power supply | +11.8 VDC to +16.0 VDC -11.8 VDC to -16.0 VDC |
| Power consumption | Less than 200 mW |
