Thông tin chi tiết sản phẩm:
|
| nồng độ phát hiện: | 0 ~ 3 ppm (formaldehyd) | Nghị quyết: | 0,04ppm (formaldehyd) |
|---|---|---|---|
| Điện áp vòng VC: | ≤5 V hoặc 3,3 V dc | Điện áp gia nhiệt VH: | 1,8 ± 0,05 V AC/DC |
| Làm nổi bật: | MEMS formaldehyde gas sensor,CH2O sensor for air purifiers,oxygen gas sensor with warranty |
||

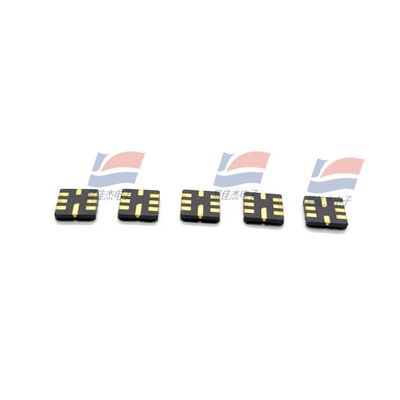

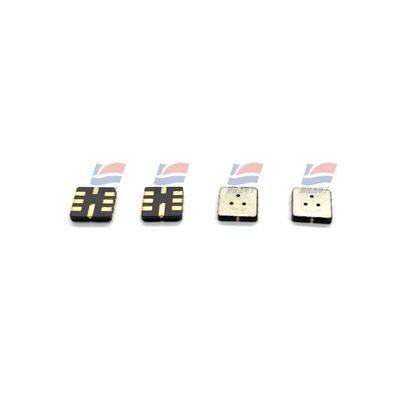

SMD1001-CH2O MEMS Formaldehyde Gas Sensor CH2O Use For Air Purifiers
SMD1001-CH2O refers to a SMD1001 Formaldehyde Gas Sensor, a compact device that detects formaldehyde (CH₂O) gas in the air, with applications in air purifiers, portable detectors, and other air quality monitoring systems. This sensor utilizes advanced MEMS technology to provide high sensitivity and rapid response for detecting formaldehyde, a volatile organic compound found in building materials like plywood and particleboard.
Function:
It is a gas sensor specifically designed to detect and monitor formaldehyde (CH₂O) levels.
Technology:
It employs advanced MEMS (Micro-Electro-Mechanical Systems) technology for its operation.
Application:
Used in devices for air purification, portable formaldehyde detectors, and general air quality monitoring.
Features:
Known for its compact size, low power consumption, and high sensitivity with rapid recovery.
Specification:
| Standard test circuit VCC | 5 V or 3.3± 0.1V; VH: 1.8V ± 0.05V |
| Preheat time | 3-5 min |
| Response time (T90) | 15S |
| Recovery time (T10) | 60S |
| Life | 3 years or more |
