Thông tin chi tiết sản phẩm:
|
| Phạm vi danh nghĩa: | 0 ~ 20 ppm | Quá tải tối đa: | 100 trang/phút |
|---|---|---|---|
| Độ nhạy (20 ° C): | -0,8 ± 0,2 μappm | Thời gian trả lời (T90): | ≤30s |
| Làm nổi bật: | Nitrogen Dioxide Gas Sensor 20PPM,Electrochemical NO2 Gas Sensor,20PPM Nitrogen Dioxide Sensor |
||

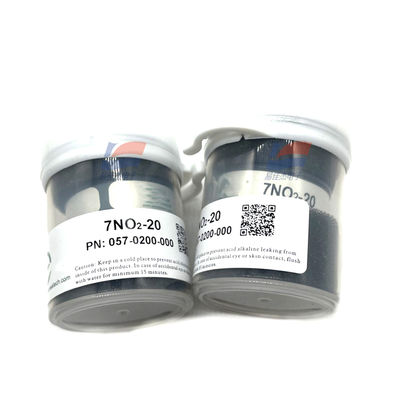

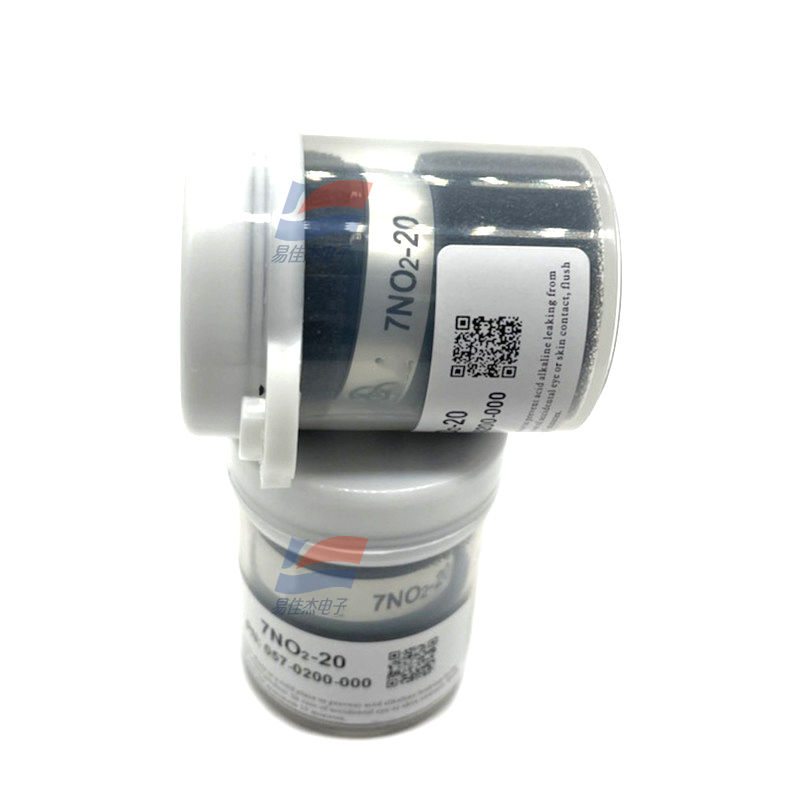

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical
Description
This sensor is designed for the measurement of Nitrogen Dioxide concentration in gas phase. It can be used as a pin-to-pin replacement for the standard 7-series electrochemical Nitrogen Dioxide sensors made by other manufacturers.
Performance Characteristics
| Baseline Shift (-40°C~50°C) | <0.5 ppm |
| Resolution | 0.005 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | 0 mV |
Environmental
| Temperature Range | -40°C-50°C |
| Pressure Range | 1 + 0.1 atm |
| Humidity Range | 15%~90%RH non-condensing |
