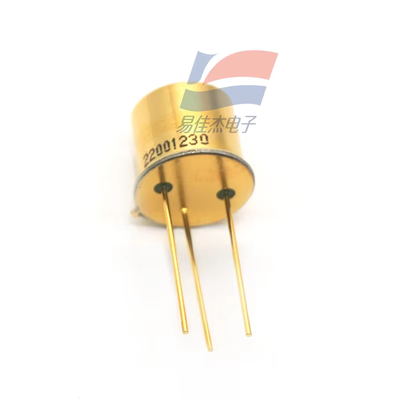

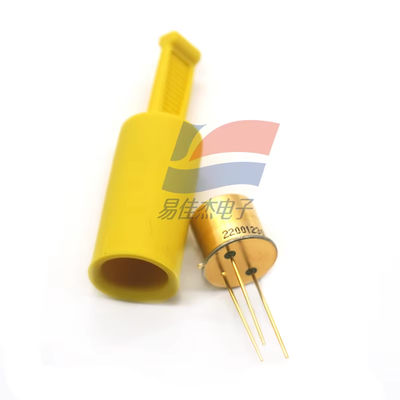

Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial
Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

Hình ảnh lớn :  Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

Thông tin chi tiết sản phẩm:
Nguồn gốc: Cn
Số mô hình: JSIR350-4-AL-R-D6
Thanh toán:
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: có thể đàm phán
chi tiết đóng gói: Bao bì tiêu chuẩn
Thời gian giao hàng: 5-8 ngày làm việc
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, Moneygram
Khả năng cung cấp: 5000pcs

Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

Sự miêu tả
Phạm vi đầu ra quang phổ: TYP. 1 - 20 m Chống nóng: 40 ± 20
Thời gian cố định: 15 mili giây tiêu thụ điện năng định mức: 650 mW
Điện áp hoạt động: 4,9 V Hiện tại hoạt động: 132 mA
Làm nổi bật:

Infrared light source for NDIR gas analysis

,

Industrial infrared photoelectric sensor

,

JSIR350-4-AL-R-D6 infrared light source



                        Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial



Product Features:

  • The sensor has an adjustable input power, which can meet different application requirements.
  • It features a high - temperature - resistant design with a hot resistance of 40 ± 20 Ω, enabling it to maintain stable and accurate readings in high - temperature environments.
  • With a high - modulation frequency, it is suitable for applications requiring fast response.
  • It has a large active area of 2.2 x 2.2 mm², which can improve the sensitivity and accuracy of gas detection.
  • The sensor has a long service life, exceeding 100,000 hours, ensuring long - term reliable operation and cost - effectiveness.

Applications:



The JSIR350 - 4 - AL - R - D6 sensor, together with a thermopile and a pyroelectric detector, is used in NDIR gas analysis and other applications. It is suitable for industrial, commercial, and residential scenarios where reliable gas detection is required, such as detecting combustible gases or monitoring specific gas concentrations.



Parameters

Values

Model Number JSIR350 - 4 - AL - R - D6
Brand Name Micro - Hybrid
Spectral Output Range Typ. 1 - 20 μm
Hot Resistance 40 ± 20 Ω
Time Constant 15 ms
Rated Power Consumption 650 mW
Operating Voltage 4.9 V
Operating Current 132 mA
Effective Area Temperature 640 °C
Temperature Coefficient 650 ppm/K
Package TO39 (modified)
Service Life > 100,000 h (at rated power, 40 Ω, 10 Hz, 50% duty cycle)
Active Area 2.2 x 2.2 mm²



Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial 0
