Thông tin chi tiết sản phẩm:
|
| Phạm vi danh nghĩa: | 0 ~ 5 ppm | Quá tải tối đa: | 20 trang/phút |
|---|---|---|---|
| Độ nhạy (20oC): | -0,50 ± 0,15 A/ppm | Thời gian trả lời (T90): | ≤ 60 tuổi |
| Làm nổi bật: | Nitrogen Dioxide gas sensor 4 electrode,Air quality monitoring gas sensor,NO2 gas sensor with warranty |
||

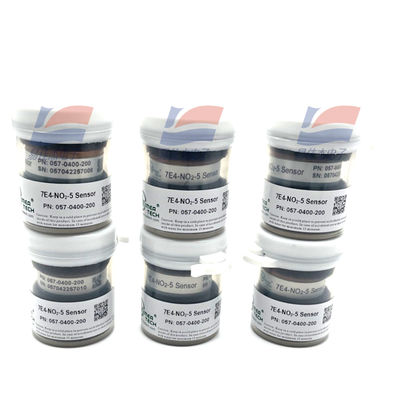

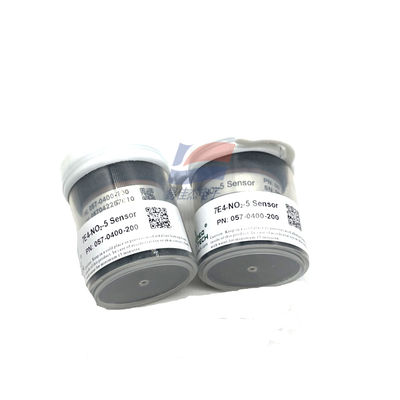

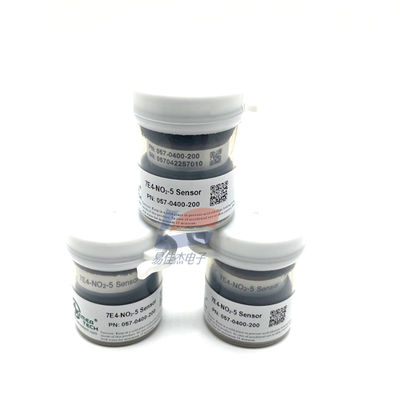

7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring
This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NO2 gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect NO2 variations at parts per billion (ppb) levels.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±70 nA |
| Baseline Shift | (-40℃ ~ 50℃) < 50 ppb (After compensation) |
| Resolution | 10 ppb |
| Linearity | Linear up to 5 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 10% signal/year |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 3 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
