Thông tin chi tiết sản phẩm:
|
| Phạm vi danh nghĩa: | 0 ~ 40.000 ppm | Quá tải tối đa: | 40.000 ppm |
|---|---|---|---|
| Độ nhạy (20oC): | 0,007 ± 0,002 A/ppm | Thời gian trả lời (T90): | ≤ 60 tuổi |
| Làm nổi bật: | Hydrogen gas sensor electrochemical,H2 gas sensor 4 series,Hydrogen sensor with warranty |
||

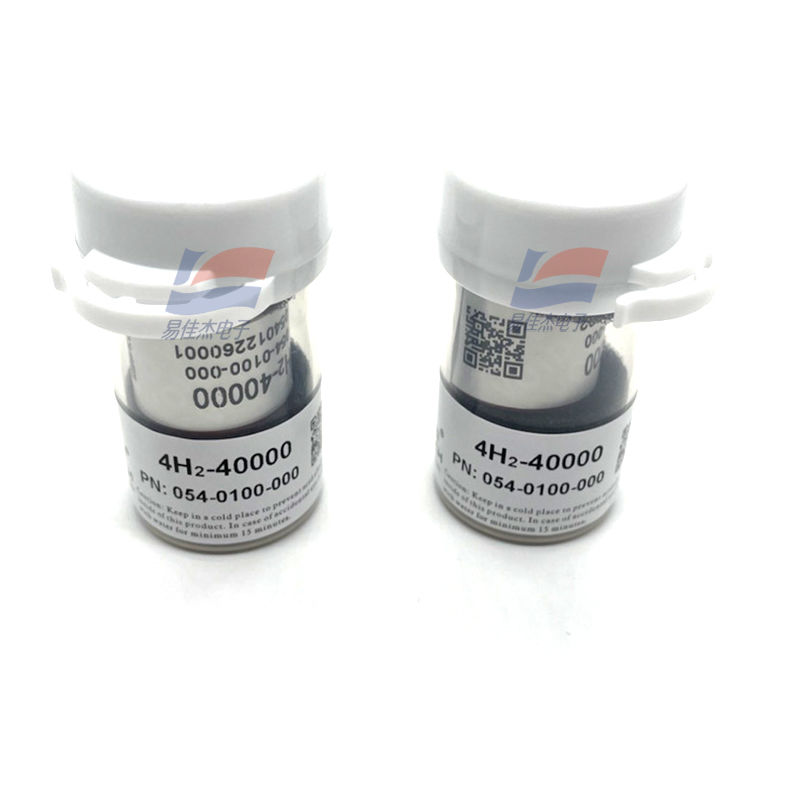

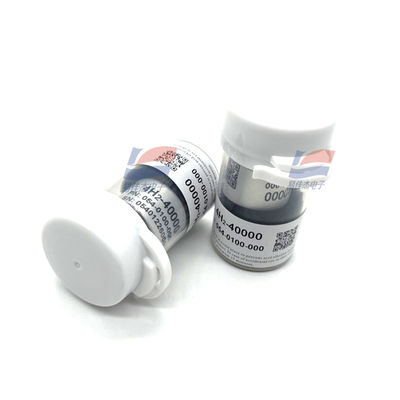

4H2-40000 054-0100-000 Hydrogen Gas Sensors 4 Series Electrochemical H2
Product Description
The sensor is designed to eliminate CO cross-sensitivity when measuring H2 concentration in the gas phase. It can be used as a pin-to-pin replacement for the standard 4-series electrochemical H2 sensor.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±1 μA |
| Baseline Shift | (-20℃ ~ 45℃) < 20 ppm |
| Resolution | 1 ppm |
| Linearity | Linear up to 40,000 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 20% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 2% signal/month |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
