Thông tin chi tiết sản phẩm:
|
| Phạm vi danh nghĩa: | 0 ~ 500 ppm | Quá tải tối đa: | 1000 trang/phút |
|---|---|---|---|
| Độ nhạy (20oC): | 0,035 ± 0,015 A/ppm | Thời gian trả lời (T90): | ≤ 55 s |
| Làm nổi bật: | electrochemical ammonia gas sensor,7NH3-500S gas sensor,059-2400-000 ammonia detector |
||

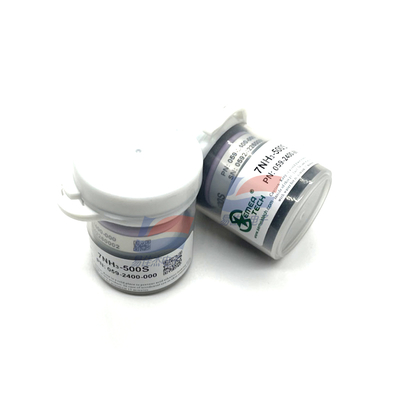

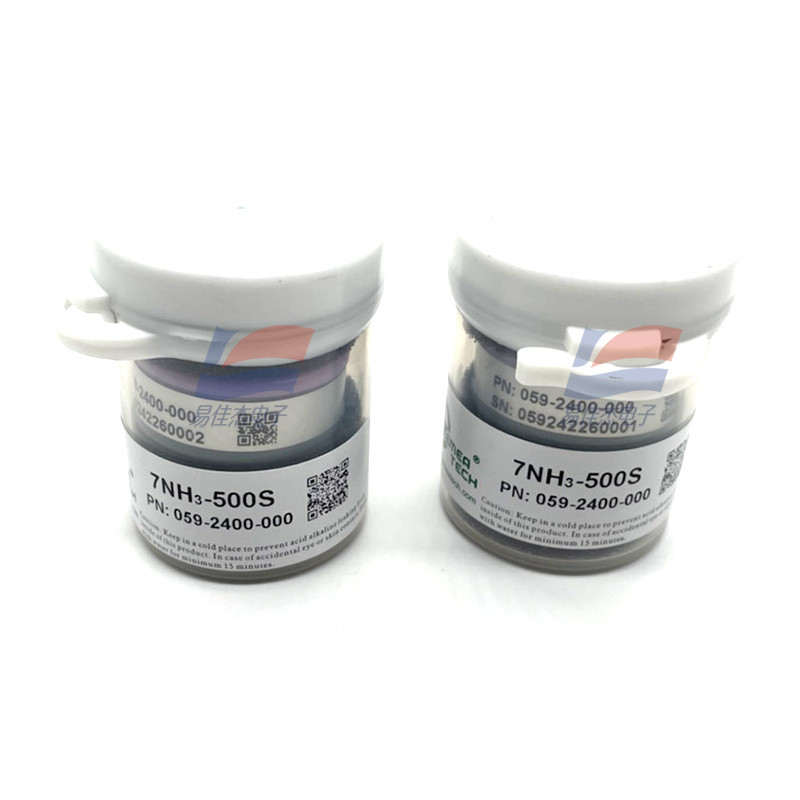

7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical
Product Description
This sensor is designed for the measurement of Ammonia concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Ammonia sensors made by the other manufacturers.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±0.2 μA |
| Baseline Shift | (-40℃ ~ 50℃) < 5 ppm |
| Resolution | 1 ppm |
| Linearity | Linear up to 500 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 2% signal/month |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
